Product Summary

The FZT753TA is a PNP silicon planar medium power transistor.

Parametrics

FZT753TA absolute maximum ratings: (1)Collector-Base Voltage VCBO: -120 V; (2)Collector-Emitter Voltage VCEO: -100 V; (3)Emitter-Base Voltage VEBO: -5 V; (4)Peak Pulse Current ICM: -6 A; (5)Continuous Collector Current IC: -2 A; (6)Power Dissipation at Tamb=25℃ Ptot: 2 W; (7)Operating and Storage Temperature Range Tj:Tstg: -55 to +150 ℃.

Features

FZT753TA features: (1)Low saturation voltage; (2)Excellent hFE specified up to 2A.

Diagrams

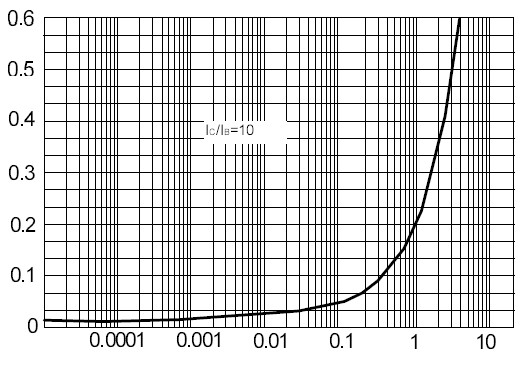

FZT753TA diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZT753TA
FZT753TA

Diodes Inc.

Transistors Bipolar (BJT) PNP Medium Power

Data Sheet

0-1: $0.50
1-25: $0.42
25-100: $0.36
100-250: $0.31
