Product Summary
The EPF10K100ARC240-3 is a PLD. Based on reconfigurable CMOS SRAM elements, the device incorporates all features necessary to implement common gate array megafunctions. With up to 250,000 gates, the EPF10K100ARC240-3 provides the density, speed, and features to integrate entire systems, including multiple 32-bit buses, into a single device. The EPF10K100ARC240-3 is reconfigurable, which allows 100% testing prior to shipment. As a result, the designer is not required to generate test vectors for fault coverage purposes. Additionally, the designer does not need to manage inventories of different ASIC designs; the EPF10K100ARC240-3 can be configured on the board for the specific functionality required.
Parametrics
EPF10K100ARC240-3 absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: –2.0 to 7.0 V; (2)VI, DC input voltage: –2.0 to 7.0 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature No bias: –65 to 150℃; (5)TAMB, Ambient temperature Under bias: –65 to 135℃; (6)TJ, Junction temperature Ceramic packages, under bias: 150℃ max; PQFP, TQFP, RQFP, and BGA packages, under bias: 135 ℃.
Features
EPF10K100ARC240-3 features: (1)Embedded programmable logic devices (PLDs), providing system-on-a-programmable-chip (SOPC) integration in a single device: Enhanced embedded array for implementing megafunctions such as efficient memory and specialized logic functions; Dual-port capability with up to 16-bit width per embedded array block (EAB); Logic array for general logic functions; (2)High density: 30,000 to 200,000 typical gates; Up to 98,304 RAM bits (4,096 bits per EAB), all of which can be used without reducing logic capacity.

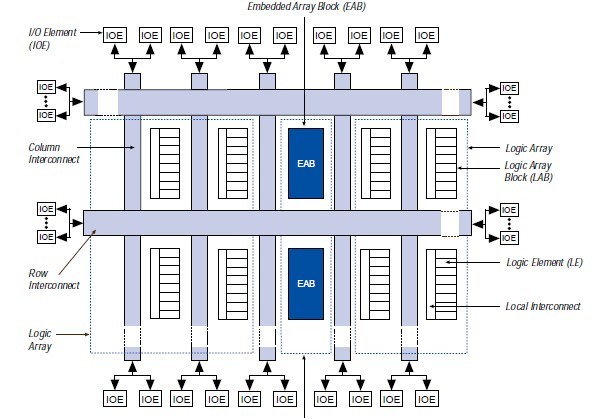

Diagrams

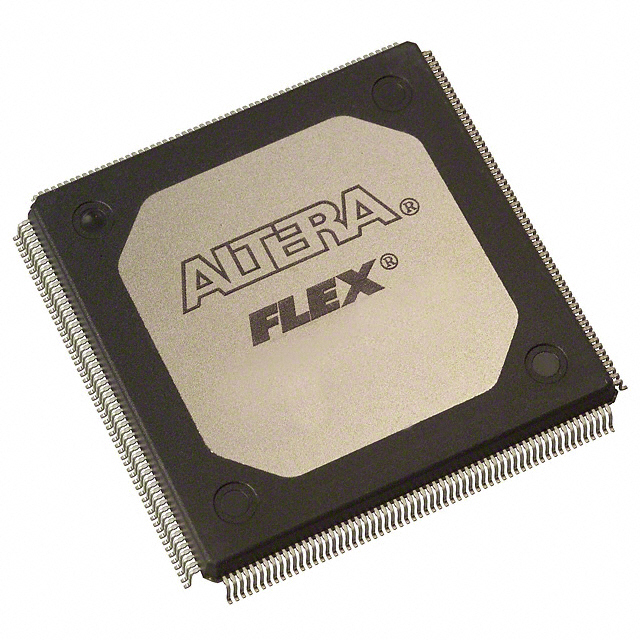

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPF10K100ARC240-3 |
|
IC FLEX 10KA FPGA 100K 240-RQFP |
Data Sheet |
|
|
||||||
|
EPF10K100ARC240-3N |
|
IC FLEX 10KA FPGA 100K 240-RQFP |
Data Sheet |
|
|
||||||
