Product Summary

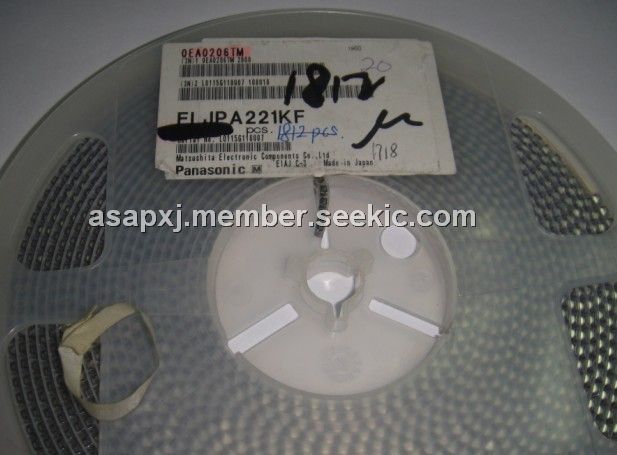

The ELJPA221KF is a Non winding (RF, 1E) and wire wound type chip inductor for automatic mounting and high-density mounting. The applications of it are CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones Pagers, Video cameras.
Parametrics
ELJPA221KF general specifications: (1)inductance:220uH, tolerance:±10%; (2)Q min.:15; (3)L, Q test freq.:0.796MHz; (4)SRF min.:4.0MHz; (5)DCR max.:11.0Ω; (6)DC current max.:60mA.
Features
ELJPA221KF features: (1)High Q; (2)Good for mounting; (3)Wide allowable range (1.0 nH to 1000 μH).

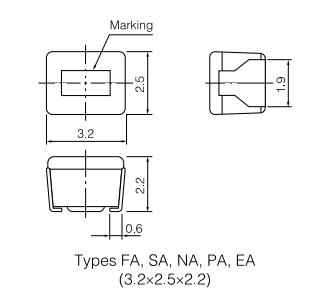

Diagrams
