Product Summary

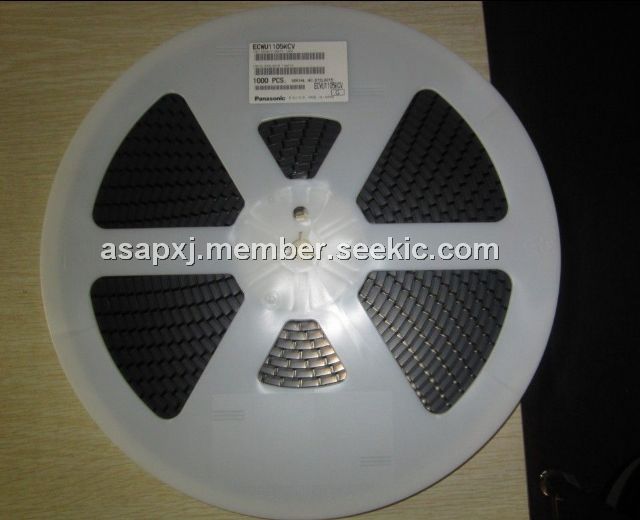

The ECWU1105KCV is a film chip capacitor. The applications of the ECWU1105KCV include Coupling, By - pass, General purpose.

Parametrics

ECWU1105KCV absolute maximum ratings: (1)Category temp.range: - 40 to + 85:; (2)Rated voltage: 250VDC; (3)Capacitance range: 0.012 to 1.0 μF (E12); (4)Capacitance tolerance: ±10%(K) (100VDC, C≤0.15 μF ± 5%(J), ±10%(K)); (5)Withstand voltage: Between terminals, 100VDC, 250VDC:Rated volt. (VDC)×150% 60s; (6)Dissipation factor: ≤ 1.0%(20℃ ,1kHz); (7)Insulation resistance: C≤0.33 μF, 100VDC, 250VDC:≥3000MΩ(20℃ ,100VDC,60s); (8)C＞0.33 μF: 100VDC, 250VDC:1000MΩ×μF min (20℃ ,100VDC,60s); (9)Soldering conditions: Reflow soldering, 100VDC, 250VDC:230℃ max. and 30 sec max.at more than 210℃ (Temp.at cap.surface).

Features

ECWU1105KCV features: (1) Small in size; (2) Applicable for reflow soldering.

Diagrams

ECWU1105KCV Dimmension
