Product Summary

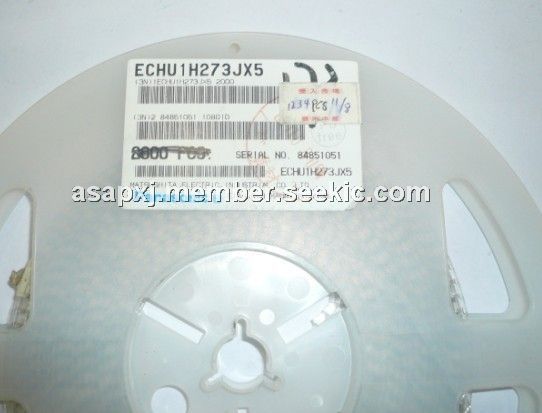

The ECHU1H273JX is a Film Chip Capacitor. The applications of it are Time-constant, Filterring, Oscillation and resonance.
Parametrics
ECHU1H273JX general specifications: (1)Category temp.range:-55 to +125℃ ; (2)Rated voltage:10VDC, 16VDC, 50VDC ; (3)Capacitance range:0.0001μF to 0.033μF(E12) ; (4)Capacitance tolerance:±2%(G), ±5%(J) ; (5)Withstand voltage:Between terminals: Rated volt.(VDC)X150%, 60s ; (6)Dissipation factor:0.6% or less (20℃, 1kHz).
Features
ECHU1H273JX features: (1)Small in size (minimum size 1.6mm x 0.8mm); (2)85 degree C, 85%RH, W.V. x 1.0, 500 hours; (3)Applicable for reflow soldering.
Diagrams
 |
