Product Summary

The E2023NL is an isolation transformer for 10BASE-T. It is also used for adapter cards, MAUs, hubs,and motherboard.

Parametrics

E2023NL characteristics: (1)Turns Ratio(±5%), Transmit: 1CT: 2.5CT; (2)Turns Ratio(±5%), Receive: 1CT: 1CT; (3)Primary Pins: 6-8/1-3; (4)Sine Wave Inductance OCL (µH MIN): 200; (5)Interwinding e Capacitance Cww (pF MAX): 15; (6)Leakage Inductance (µH MAX): 0.5; (7)DCR (W MAX): 0.4; (8)Hipot (Vrms): 2000.

Features

E2023NL features: (1)Peak solder temperature ratings per table 5-2 in IPC/JEDEC J-STD-020; (2)Meets IEEE 802.3 specification; (3)Available with common mode chokes for EMI suppression; (4)Through hole, auto-insertable, 16-pin DIP package.

Diagrams

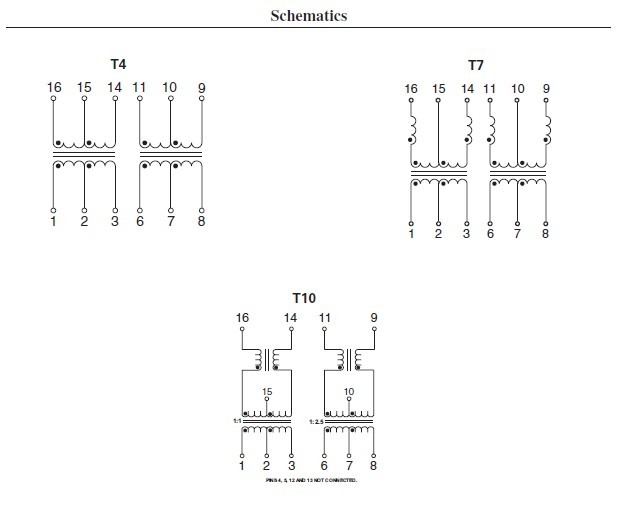

E2023NL circuit diagram
