Product Summary

The DTC143ZMT2L is a digital transistor with built-in resistors. The bias resistor consists of thin-film resistors with complete isolation to allow negative biasing of the input. The DTC143ZMT2L also has the advantage of almost completely eliminating parasitic effects.

Parametrics

DTC143ZMT2L absolute maximum ratings: (1)Supply voltage, VCC: 50V ; (2)Input voltage, VIN: -5 to +30V ; (3)Output current, IO: 100mA ; (4)IC(Max.): 100 ; (5)Power dissipation, Pd: 150 to 300mW ; (6)Junction temperature, Tj: 150℃; (7)Storage temperature, Tstg: -55 to +150℃.

Features

DTC143ZMT2L features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)Only the on/off conditions need to be set for operation, making device design easy.

Diagrams

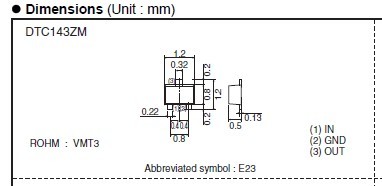

DTC143ZMT2L diemnsion

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DTC143ZMT2L
DTC143ZMT2L

ROHM Semiconductor

Transistors Switching (Resistor Biased) DGTL NPN 50V 100MA

Data Sheet

0-1: $0.52
1-25: $0.44
25-100: $0.34
100-500: $0.23
