Product Summary

The DTC114EMT2L is a 100mA/50V Digital transistor. Applications of the device include Inverter, Interface, Driver.

Parametrics

DTC114EMT2L absolute maximum ratings: (1)Supply voltage, VCC: 50V; (2)Input voltage, VIN: -10 to +40V; (3)Output current, IO: 50mA; IO(max): 100mA; (4)Power dissipation, PD: 150mW; (5)Junction temperature, Tj: 150℃; (6)Storage temperature, Tstg: -55 to +150℃.

Features

DTC114EMT2L features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making the device design easy.

Diagrams

DTC114EMT2L block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

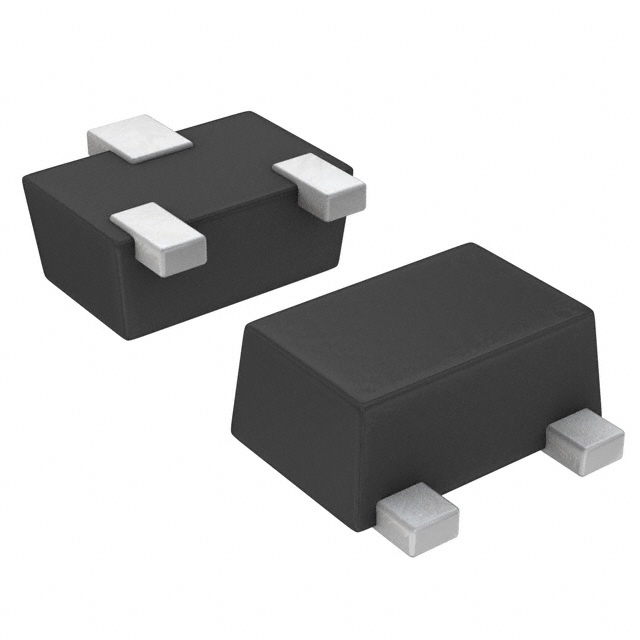

DTC114EMT2L
DTC114EMT2L

ROHM Semiconductor

Transistors Switching (Resistor Biased) NPN 50V 50MA

Data Sheet

0-8000: $0.04
8000-16000: $0.03
16000-32000: $0.03
