Product Summary
Parametrics
Number of Inputs: 2
Features: -
Logic Type: OR Gate
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Number of Circuits: 4
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Mounting Type: Through Hole

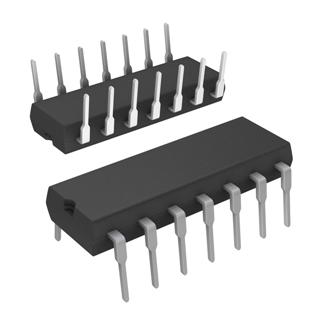

Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Series: 74AS
Current - Output High, Low: 48mA, 48mA
Max Propagation Delay @ V, Max CL: 6.3ns @ 4.5V ~ 5.5V, 50pF
Supplier Device Package: 14-DIP
Manufacturer: Fairchild Semiconductor
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DM74AS1032AN |
|
IC GATE O4 QUAD 2INPUT 14DIP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
DM7400 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
DM7400N |
Fairchild Semiconductor |
IC GATE NAND QUAD 2INP 14-DIP |
Data Sheet |
Negotiable |
|
||||||
|
DM7401 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
DM7402 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
DM7402N |
|
IC GATE NOR QUAD 2INP 14-DIP |
Data Sheet |
Negotiable |
|
||||||
|
DM7403 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
