Product Summary
Parametrics
Mounting Type: Surface Mount
Number of Inputs: 2
Features: -
Logic Type: NAND Gate
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Max Propagation Delay @ V, Max CL: 8ns @ 4.5V ~ 5.5V, 50pF
Logic Level - Low: 0.8V

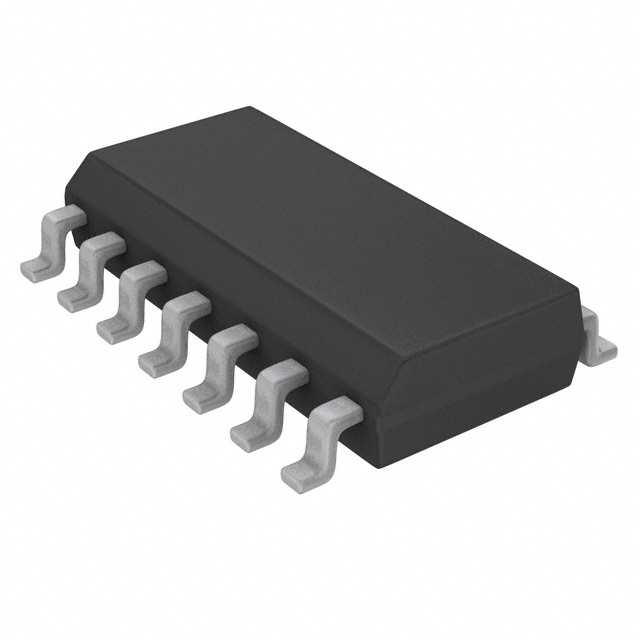

Supplier Device Package: 14-SOIC
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Number of Circuits: 4
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Series: 74ALS
Packaging: Tape & Reel (TR)
Manufacturer: Fairchild Semiconductor
Current - Output High, Low: 2.6mA, 24mA
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DM74ALS37AMX |
|
IC GATE NAND QUAD 2INPUT 14SOIC |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
DM7400 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
DM7400N |
Fairchild Semiconductor |
IC GATE NAND QUAD 2INP 14-DIP |
Data Sheet |
Negotiable |
|
||||
|
DM7401 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DM7402 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
DM7402N |
|
IC GATE NOR QUAD 2INP 14-DIP |
Data Sheet |
Negotiable |
|
||||
|
DM7403 |
Other |
|
Data Sheet |
Negotiable |
|
||||
