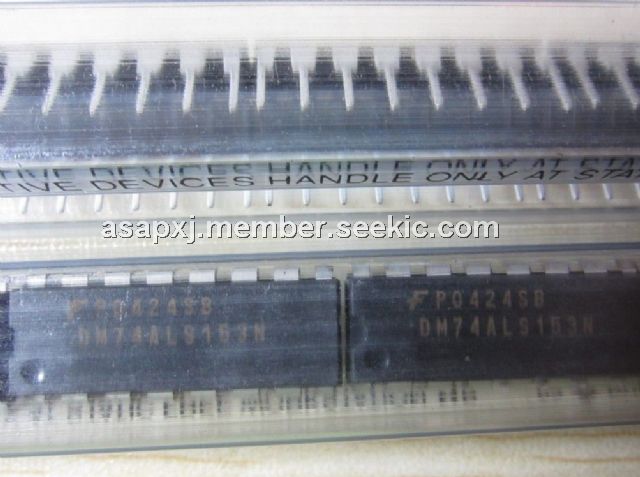

Product Summary
The DM74ALS153N is a dual 1 of 4 line data selector/multiplexer. This Data Selector/Multiplexer contains full on-chip decoding to select one-of-four data sources as a result of a unique two-bit binary code at the Select inputs. Each of the two Data Selector/Multiplexer circuits has their own separate Data and Strobe inputs and a non-inverting output buffer. The Select inputs A and B are common to both sections. The Strobe inputs, when at the HIGH level, disable their associated data inputs and force the corresponding output to the LOW state. The Select input of the DM74ALS153N buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients.
Parametrics
DM74ALS153N absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Operating Free Air Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Typical θJA: N Package 78.0℃/W, M Package 107.0℃/W.
Features
DM74ALS153N features: (1) Advanced oxide-isolated, ion-implanted Schottky TTL process; (2) Switching performance is guaranteed over full temperature and VCC supply range; (3) Pin and functional compatible with LS family counterpart; (4) Improved output transient handling capability.

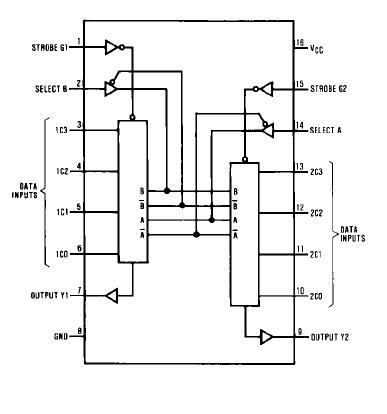

Diagrams
