The DM74ALS02MX is a Quad 2-Input NOR Gate. It contains four independent gates, each of which performs the logic NOR function.
Parametrics
DM74ALS02MX absolute maximum ratings: (1)Supply Voltage:7V; (2)Input Voltage:7V; (3)Operating Free Air Temperature Range:0℃ to +70℃; (4)Storage Temperature Range:-65℃ to +150℃; (5)Typical θJA:N Package 86.5℃/W,M Package:116.0℃/W.
Features
DM74ALS02MX features: (1)Switching specifications at 50 pF; (2)Switching specifications guaranteed over full temperature and VCC range; (3)Advanced oxide-isolated, ion-implanted Schottky TTL process; (4)Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart; (5)Improved AC performance over Schottky and low power Schottky counterparts.

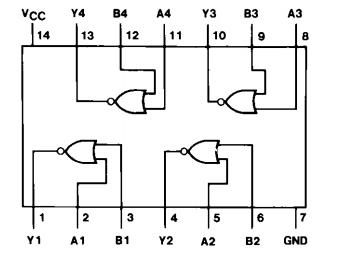

Diagrams
