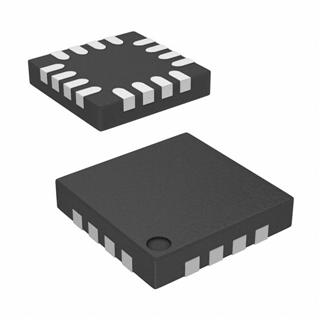

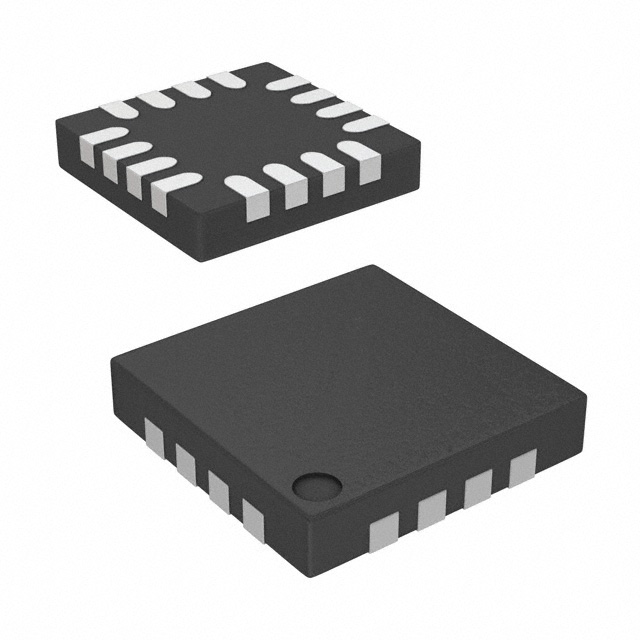

CY8C20110-LDX2I

CapSenseLITE controller, 6.0 V, 50 mA, 16UQFN, CY8C20110-LDX2I

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.74~3.74 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.74~3.74

PartNumber:: CY8C20110-LDX2I

Brand:: Cypress Semiconductor - Cypress | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:CY8C20110-LDX2I
US $3.74 - 3.74
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CY8C20110-LDX2I is a CapSenseLITE controller. It allows the control of ten IOs configurable as capacitive sensing buttons or as GPIOs for driving LEDs or interrupt signals based on various button conditions. The GPIOs are also configurable for waking up the CY8C20110-LDX2I from sleep based on an interrupt input. The user has the ability to configure buttons, outputs, and parameters, through specific commands sent to the I2C port. The CY8C20110-LDX2I has the flexibility in mapping to capacitive buttons and as standard GPIO functions such as interrupt output or input, LED drive and digital mapping of input to output using simple logical operations.

Parametrics

CY8C20110-LDX2I absolute maximum ratings: (1)TSTG Storage temperature: –55 to +100 ℃; (2)TA Ambient temperature with power applied: –40 to +85 ℃; (3)VDD Supply voltage on VDD relative to VSS: –0.5 to +6.0 V; (4)VIO DC input voltage: VSS – 0.5 to VDD + 0.5 V; (5)VIOZ DC voltage applied to tri-state: VSS – 0.5 to VDD + 0.5 V; (6)IMIO Maximum current into any GPIO pin: –25 to +50 mA; (7)ESD Electrostatic discharge voltage: 2000 V; (8)LU Latch up current: 200 mA.

Features

CY8C20110-LDX2I features: (1)Ten configurable IOs supporting; (2)2.4V to 5.25V operating voltage; (3)Industrial temperature range: –40℃ to +85℃; (4)I2C slave interface for configuration; (5)Reduce BOM cost; (6)Low operating current; (7)Available in 16-pin QFN and 16-pin SOIC packages.
