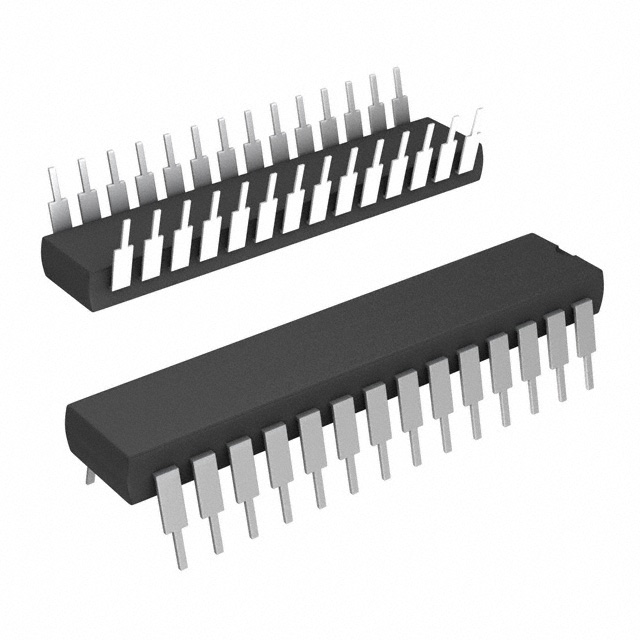

CY62256L-70PC

high-performance CMOS static RAM, 256KBIT, 70NS, 28DIP, CY62256L-70PC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.66~1.66 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.66~1.66

PartNumber:: CY62256L-70PC

Brand:: Cypress Semiconductor - Cypress | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:CY62256L-70PC
US $1.66 - 1.66

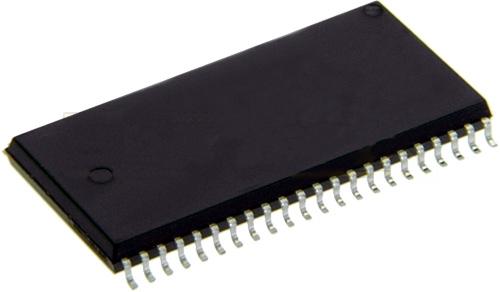

EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

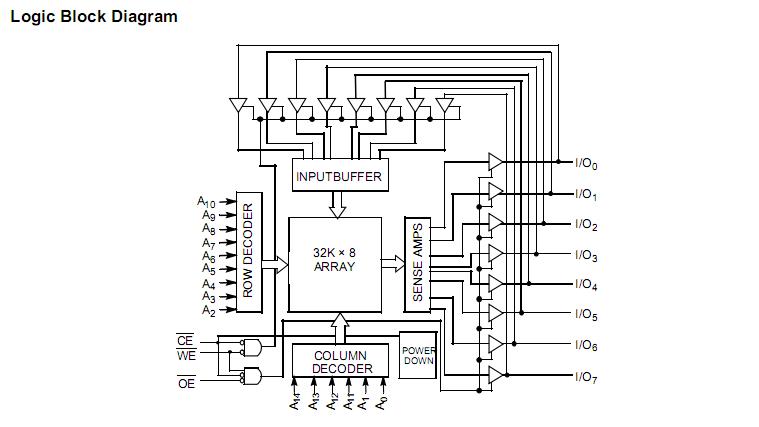

The CY62256L-70PC is a high-performance CMOS static RAM organized as 32K words by 8 bits.

Parametrics

CY62256L-70PC absolute maximum ratings: (1)Storage Temperature:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Supply Voltage to Ground Potential:–0.5V to +7V; (4)DC Voltage Applied to Outputs in High-Z State:–0.5V to VCC+0.5V; (5)DC Input Voltage:–0.5V to VCC + 0.5V; (6)Output Current into Outputs (LOW):20 mA; (7)Static Discharge Voltage:> 2001V(per MIL-STD-883, Method 3015); (8)Latch-up Current:> 200 mA.

Features

CY62256L-70PC features: (1)High speed:55 ns ; (2)Temperature Ranges:Commercial: 0℃ to 70℃,Industrial: –40℃ to 85℃,Automotive:–40℃ to 125℃; (3)Voltage range:4.5V to 5.5V ; (4)Low active power and standby power ; (5)Easy memory expansion with CE and OE features; (6)TTL-compatible inputs and outputs; (7)Automatic power-down when deselected; (8)CMOS for optimum speed/power; (9)Available in a Pb-free and non Pb-free standard 28-pin narrow SOIC, 28-pin TSOP-1, 28-pin Reverse TSOP-1 and 28-pin DIP packages.
