Product Summary

Parametrics

Series: -
Number of Circuits: 1
Differential - Input:Output: No/No
Mounting Type: Surface Mount
Divider/Multiplier: No/No

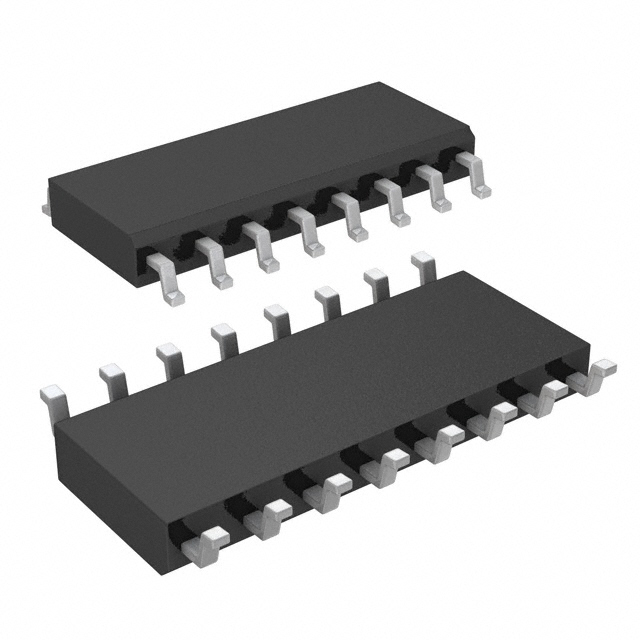

Package / Case: 16-SOIC (0.154", 3.90mm Width)
Packaging: Tube
PLL: Yes with Bypass
Voltage - Supply: 3 V ~ 3.6 V
Output: LVCMOS
Operating Temperature: 0°C ~ 70°C
Ratio - Input:Output: 1:9
Input: LVCMOS, LVTTL
Supplier Device Package: 16-SOIC
Manufacturer: Cypress Semiconductor Corp
Type: Fanout Buffer (Distribution), Zero Delay Buffer
Frequency - Max: 133.33MHz

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CY2309SC-1
CY2309SC-1

Cypress Semiconductor

Phase Locked Loops (PLL) 3.3VZDB COM

Data Sheet

0-330: $1.09
330-500: $1.05
500-1000: $0.98
1000-2000: $0.94
CY2309SC-1H
CY2309SC-1H

Cypress Semiconductor

Phase Locked Loops (PLL) 3.3VZDB COM

Data Sheet

0-1: $1.94
1-25: $1.55
25-50: $1.41
50-100: $1.27
CY2309SC-1HT
CY2309SC-1HT

Cypress Semiconductor

Phase Locked Loops (PLL) 3. 3V ZDB Internal Feedck

Data Sheet

0-1860: $0.79
1860-2000: $0.76
2000-2500: $0.76
2500-5000: $0.75
CY2309SC-1T
CY2309SC-1T

Cypress Semiconductor

Phase Locked Loops (PLL) 3. 3V ZDB Internal Feedck

Data Sheet

0-1860: $1.02
1860-2000: $0.98
2000-2500: $0.98
2500-5000: $0.96
