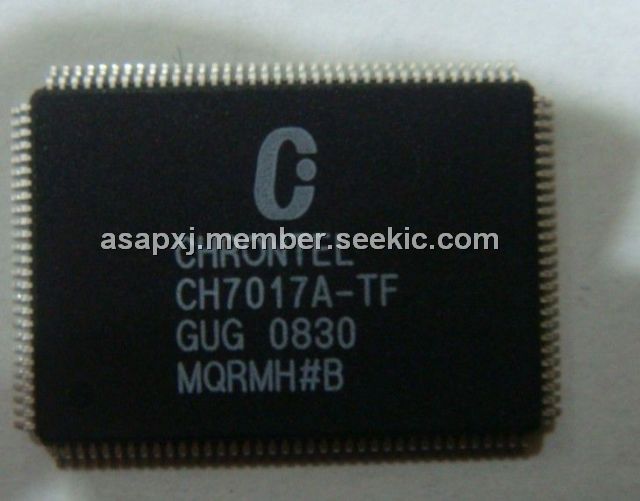

The CH7017A-TF is a Display Controller device that accepts two digital graphics input data streams. One data stream outputs through an LVDS transmitter to a LCD panel, while the other data stream is encoded for NTSC or PAL TV and outputs through four 10-bit high-speed DACs.
Parametrics
CH7017A-TF absolute maxing ratings: (1)All power supplies relative to GND: min=-0.5V, max=5.0V; (2)Input voltage of all digital pins: min=GND-0.5V, max=VDD+0.5V; (3)TSC Analog output short circuit duration: Indefinite Sec; (4)TAMB Ambient operating temperature: min=0, max=85℃; (5)TSTOR Storage temperature: min=-65℃, max=150℃; (6)TJ Junction temperature: max=150℃; (7)TVPS Vapor phase soldering (5 second): max=260℃.
Features
CH7017A-TF features: (1)Single / Dual LVDS transmitter; (2)Dual LVDS supporting pixel rates up to 330Mpixels/sec when both 12-bit input ports are ganged together; (3)Panel fitting scaler ?up scale to 1600x1200 pixels; (4)LVDS low jitter PLL accepting EMI reduction input; (5)LVDS 18-bit and 24-bit outputs; (6)2D dither engine; (7)Panel protection and Power-Down sequencing; (8)Programmable power management.

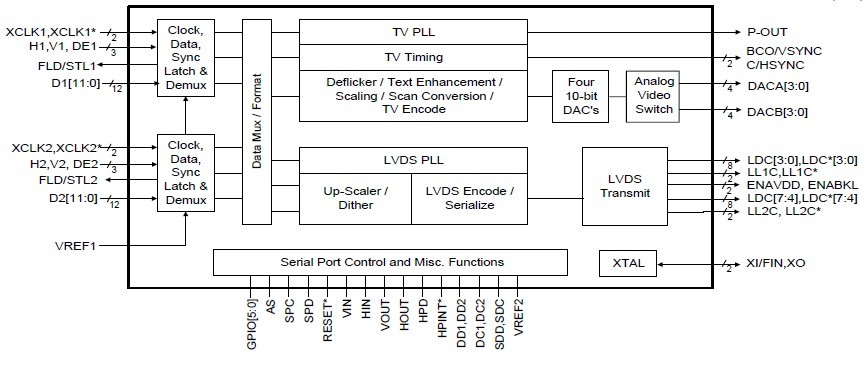

Diagrams
 |
