Product Summary
The CD74HC238E is a high-speed silicon-gate CMOS decoder, which is well suited to memory address decoding or data-routing applications. It features low power consumption usually associated with CMOS circuitry, yet has speeds comparable to low-power Schottky TTL logic. The CD74HC238E has three binary select inputs (A0, A1, and A2). If the device is enabled, these inputs determine which one of the eight normally high outputs of the CD74HC238E go low or which of the normally low outputs of the CD74HC238E series go high. Two active low and one active high enables (E1, E2, and E3) are provided to ease the cascading of decoders. The decoder’s eight outputs can drive ten low-power Schottky TTL equivalent loads.
Parametrics
CD74HC238E absolute maximum ratings: (1)DC Supply Voltage, VCC: -0.5V to 7V; (2)DC Input Diode Current, IIK For VI < -0.5V or VI > VCC + 0.5V: ±20mA; (3)DC Output Diode Current, IOK For VO < -0.5V or VO > VCC + 0.5V: ±20mA; (4)DC Output Source or Sink Current per Output Pin, IO For VO > -0.5V or VO < VCC + 0.5V: ±25mA; (5)DC VCC or Ground Current, ICC or IGND: ±50mA.
Features
CD74HC238E features: (1)Select One Of Eight Data Outputs Active Low for 138, Active High for 238; (2)l/O Port or Memory Selector; (3)Three Enable Inputs to Simplify Cascading; (4)Typical Propagation Delay of 13 ns at VCC = 5 V, CL = 15 pF, TA = 25℃; (5)Fanout (Over Temperature Range): Standard Outputs: 10 LSTTL Loads, Bus Driver Outputs: 15 LSTTL Loads; (6)Wide Operating Temperature Range: -55℃ to 125℃; (7)Balanced Propagation Delay and Transition Times; (8)Significant Power Reduction Compared to LSTTL Logic ICs; (9)HC Types: 2 V to 6 V Operation, High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5 V; (10)HCT Types: 4.5-V to 5.5-V Operation, Direct LSTTL Input Logic Compatibility, VIL= 0.8 V (Max), VIH = 2 V (Min), CMOS Input Compatibility, Il≤1μA at VOL, VOH.

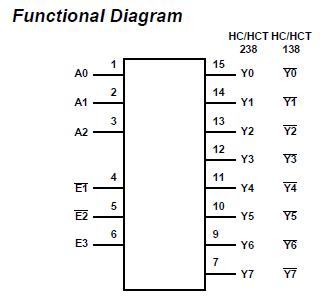

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD74HC238E |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Hi-Spd CMOS 3-8 Line Decoder/Demltplxr |
Data Sheet |
|
|
||||||||||||
|
CD74HC238EE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers Hi-Spd CMOS 3-8 Line Decoder/Demltplxr |
Data Sheet |
|
|
||||||||||||
