Product Summary
The CD74HC08PWR is a High-Speed CMOS Logic Quad 2-Input and Gate. It utilizes silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. The CD74HC08PWR has the ability to drive 10 LSTTL loads.
Parametrics
CD74HC08PWR absolute maximum ratings: (1)DC Supply Voltage, VCC: -0.5V to 7V; (2)DC Input Diode Current, IIK For VI < -0.5V or VI > VCC + 0.5V: ±20mA; (3)DC Output Diode Current, IOK For VO < -0.5V or VO > VCC + 0.5V: ±20mA; (4)DC Output Source or Sink Current per Output Pin, IO For VO > -0.5V or VO < VCC + 0.5V: ±25mA; (5)DC VCC or Ground Current, ICC or IGND: ±50mA.
Features
CD74HC08PWR features: (1)Buffered Inputs; (2)Typical Propagation Delay: 7ns at VCC = 5V, CL = 15pF, TA = 25℃; (3)Fanout (Over Temperature Range) Standard Outputs: 10 LSTTL Loads, Bus Driver Outputs: 15 LSTTL Loads; (4)Wide Operating Temperature Range: -55℃ to 125℃; (5)Balanced Propagation Delay and Transition Times; (6)Significant Power Reduction Compared to LSTTL Logic ICs; (7)HC Types: 2V to 6V Operation, High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V; (8)CMOS Input Compatibility, Il ≤ 1μA at VOL, VOH.

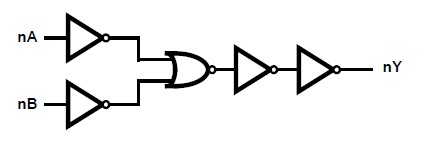

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD74HC08PWR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Hi-Speed CMOS Logic Quad 2-Inp AND Gate |
Data Sheet |
|
|
||||||||||||
|
CD74HC08PWRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Hi-Speed CMOS Logic Quad 2-Inp AND Gate |
Data Sheet |
|
|
||||||||||||
|
CD74HC08PWRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Hi Spd CMOS Quad 2- Input AND |
Data Sheet |
|
|
||||||||||||
