Product Summary
The CD4069UBM96 is a CMOS Hex inverter, which consists of six CMOS inverter circuits. The CD4069UBM96 is intended for all general-purpose inverter applications where the medium-power TTL- drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 Hex Inverter/Buffers are not required.
Parametrics
CD4069UBM96 absolute maximum ratings: (1)DC supply-voltage range, (VDD) voltages referenced to VSS terminal): -0.5V to +20V; (2)input voltage range, all inputs: -0.5V to VDD + 0.5V; (3)DC input current, any one input: 士10mA; (4)power dissipation per package (PD): 500m W For TA = -55℃ to +100℃; derate linearly at 12W/℃ to 200mW for TA+100℃ to +125℃; (5)device dissipation pea output transistor for TA=full package-temperature range (all package tyres): 100mW; (6)operating-temperature range (TA): -55℃ to 125℃; (7)storage temperature range (Tstg): -65℃ to +150℃.
Features
CD4069UBM96 features: (1)standardized symmetrical output characteristics; (2)medium Speed operation-tpHL, tpLH=30 ns (typ) at 10V; (3)100% tested for quiescent current at 20 V; (4)maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25℃; (5)meets all requirements of JEDEC tentative standard No. 138, "standard specifications for description of B Series.CMOS Devices".

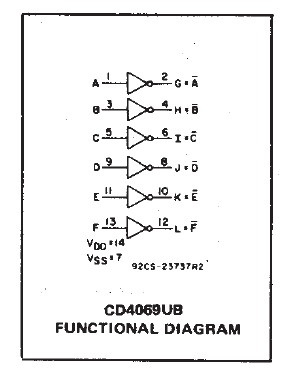

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4069UBM96 |
Texas Instruments |
Inverters Hex |
Data Sheet |
|
|
||||||||||||
|
CD4069UBM96E4 |
Texas Instruments |
Inverters CMOS HEX INVERTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
CD4069UBM96G4 |
Texas Instruments |
Inverters CMOS Hex Inverter |
Data Sheet |
Negotiable |
|
||||||||||||
