Product Summary
The CD4052 is an analog mul-tiplexer/demultiplexer. It is a digitally controlled analog switch having low ON impedance and very low OFF leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3-15V. The multiplexer circuit CD4052 dissipate extremely low quiescent power over the full VDD-VSS and VDD-VEE supply voltage ranges, independent of the logic state of the control signals. When a logical 1 is present at the inhibit input terminal all channels are OFF.
Parametrics
CD4052 absolute maximum ratings: (1)DC Supply Voltage (VDD): -0.5 VDC to +18 VDC; (2)Input Voltage (VIN): -0.5 VDC to VDD +0.5 VDC; (3)Storage Temperature Range (TS): -65 to +150℃; (4)Power Dissipation (PD): 700 mW; (5)Lead Temperature (TL) (soldering, 10 seconds): 260℃.
Features
CD4052 features: (1)Wide range of digital and analog signal levels: digital 3 – 15V, analog to 15Vp-p; (2)Low ON resistance: 80Ω (typ.) over entire 15Vp-p signal-input range for VDD - VEE = 15V; (3)High OFF resistance: channel leakage of ±10 pA (typ.) at VDD - VEE = 10V; (4)Logic level conversion for digital addressing signals of 3 – 15V (VDD - VSS = 3 – 15V) to switch analog signals to 15 Vp-p (VDD - VEE = 15V); (5)Matched switch characteristics: △RON = 5Ω (typ.) for VDD - VEE = 15V; (6)Very low quiescent power dissipation under all digital-control input and supply conditions: 1 μ W (typ.) at VDD - VSS = VDD - VEE = 10V; (7)Binary address decoding on chip.

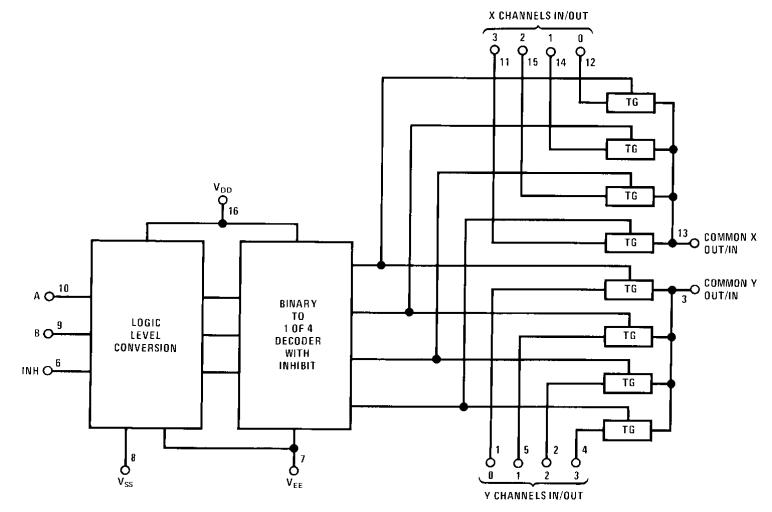

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4052BC |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
CD4052BCM |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||||||||||
|
CD4052BCM_Q |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||||||||||
|
CD4052BCMX |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||||||||||
 |
CD4052BCSJ |
Fairchild Semiconductor |
Multiplexer Switch ICs Multi/Demultiplexer Dual 4Ch analog |
Data Sheet |
Negotiable |
|
||||||||||||
|
CD4052BCSJX |
Fairchild Semiconductor |
Multiplexer Switch ICs Multi/Demultiplexer Dual 4Ch analog |
Data Sheet |
|
|
||||||||||||
|
CD4052BCSJX_NL |
Fairchild Semiconductor |
Multiplexer Switch ICs FINISHED GOOD |
Data Sheet |
Negotiable |
|
||||||||||||
 |
CD4052BE |
Texas Instruments |
Multiplexer Switch ICs 4-Ch. Analog |
Data Sheet |
|
|
||||||||||||
