Product Summary
The CD4028BM96 is a BCD-to-decimal decoder. The CD4028BM96 is consisting of buffering on all 4 inputs, decoding logic gates, and 10 output buffers. A BCD code applied to the four inputs, A to D, results in a high level at the selected one of 10 decimal decoded outputs. Similarly, a 3-bit binary code applied to inputs A through C is decoded in octal code at output 0 to 7 if D=0. High drive capability is provided at all outputs to enhance dc and dynamic performance in high fan-out applications.
Parametrics
CD4028BM96 absolute maximum ratings: (1)DC supply voltage range, VDD: -0.5 to 20V; (2)input voltage range, all inputs: -0.5 to VDD+0.5V; (3)DC input current, any one input: ±10mA; (4)power dissipation per package, PD: 550mW; (5)device dissipation per output transistor: 100mW; (6)operating temperature range, TA: -55 to 125℃; (7)storage temeprature range, Tstg: -65 to 150℃; (8)lead temrpature: 265℃.
Features
CD4028BM96 features: (1)BCD-to-decimal decoding or binary-to ocatal decoding; (2)high decoded output drive capbility; (3)positive logic inputs and outputs decoded outputs go high on selection; (4)medium-speed operation; (5)standardized, symmetrical output characteristics; (6)100% tested for quiescent current at 20V; (7)maximum input current of 1μA at 18V; (8)5V, 10V and 15V parametric ratings; (9)meets all requirements of JEDEC tentative standard No138.

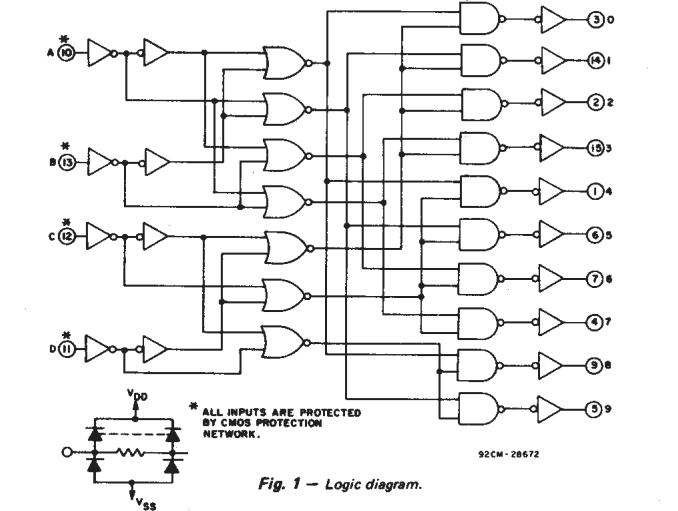

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4028BM96 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers CMOS BCD-to-Decimal |
Data Sheet |
|
|
||||||||||||
|
CD4028BM96E4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers CMOS BCD-Dec or Bin- Octal Dec/Drivers |
Data Sheet |
|
|
||||||||||||
|
CD4028BM96G4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers CMOS BCD-Dec or Bin- Octal Dec/Drivers |
Data Sheet |
|
|
||||||||||||
