Product Summary
The CD4013BM96 is designed as one kind of CMOS dual D-type flip-flop which consists of two identical independent data-type flip-flops. Each flip-flop of CD4013BM96 has independent data, set, reset, and clock inputs and Q and /Q outputs.
Parametrics
CD4013BM96 absolute maximum ratings: (1)DC supply voltage range: -0.5V to 20V; (2)input voltage range all inputs: -0.5V to Vdd+0.5V; (3)DC input current any one input: +/-10mA; (4)power dissipation per package: 500mW; (5)device dissipation per output transistor: 100mW; (6)operating temperature range: -55℃ to 125℃; (7)storage temperature range: -65℃ to 150℃; (8)lead temperature during soldering: 265℃.
Features
CD4013BM96 features: (1)Set-reset capability. (2)Static flip-flop operation retains state indefinitely with clock level either "high" or "low". (3)Medium-speed operation 16MHz clock toggle rate at 10V. (4)Standardized symmetrical output characteristics. (5)100% tested for quiescent current at 20V. (6)Maximum input current of 1uA at 18V over full package temperature range; 100na at 18V and 25℃. (7)Noise margin (over full package temperature range): 1V at Vdd=5V and 2V at Vdd=10V and 2.5V at Vdd=15V. (8)5V, 10V and 15V parametric ratings. (9)Meets all requirements of JEDEC tentatice standard No.13B.

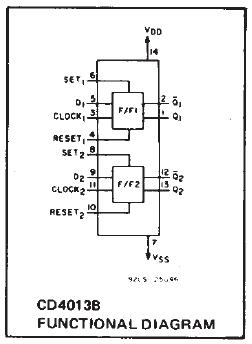

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4013BM96 |
Texas Instruments |
Flip Flops CMOS Dual D-Type Flip Flop |
Data Sheet |
|
|
||||||||||||
|
CD4013BM96E4 |
Texas Instruments |
Flip Flops CMOS Dual D-Type Flip Flop |
Data Sheet |
|
|
||||||||||||
|
CD4013BM96G4 |
Texas Instruments |
Flip Flops CMOS Dual D-Type Flip Flop |
Data Sheet |
|
|
||||||||||||
