Product Summary
The BLM41PG600S is a on-board type (DC) EMI suppression filter. The BLM41PG600S chip ferrite bead BLM series comprises femite beads in the shape of a chip. This ferrite bead generates a high impedance which at high frequencies mainly consists of a resistance element. The BLM41PG600S is effective in circuits without stable ground lines because the device does not need a connection to ground.
Parametrics
BLM41PG600S general specifications: (1)impedamce: at 100MHz:60Ω(typ.); (2)rated current:6000mA.
Features
BLM41PG600S features: (1)It can be used in digital interface. Resestance of BLM R especially grows in the lower frequency range. Therefore BLM is less effective for digital signal waveform at low frequency range and can suppress the ringing; (2)It generates an impedance from the relatively low frequencies. Therefore it is effective in noise suppression in the wide frequency range; (3)It can minimize attenuation of the signal waveform due to its sharp impedance characteristics.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLM41PG600SH1L |
Murata |
EMI Filter Beads, Chokes & Arrays 1806 60ohms Power Supply Tape |
Data Sheet |
|
|
||||||||||||
|

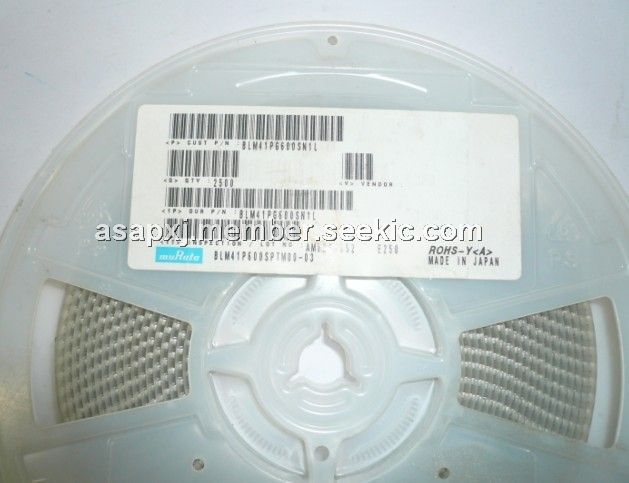

BLM41PG600SN1L |
Murata |
EMI Filter Beads, Chokes & Arrays 1806 60 OHM |
Data Sheet |
|
|
||||||||||||
