Product Summary

The BD682 is a plastic, medium-power silicon PNP Darlington transistor. The device can be used as output devices in complementary general-purpose amplifier applications.

Parametrics

BD682 absolute maximum ratings: (1)collector-emitter voltage, VCEO: 100Vdc; (2)collector-base voltage, VCBO: 100Vdc; (3)emitter-base voltage, VEBO: 5.0Vdc; (4)collector current, IC: 4.0Adc; (5)base current, IB: 0.1Adc; (6)total device dissipation @Tc=25℃, PD: 40W; 0.32W/℃ when derate above 25℃; (7)operating and storage junction temperature range, Tj, Tstg: -55 to 150℃.

Features

BD682 features: (1)High DC Current Gain - hFE = 750 (Min) @ IC = 1.5 and 2.0 Adc; (2)Monolithic Construction; (3)682 is complementary with BD675, 675A, 677, 677A, 679, 679A, 681; (4)Pb-Free Package are Available.

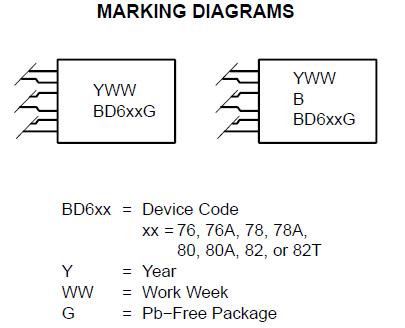

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BD682
BD682
STMicroelectronics
Transistors Darlington PNP Power Darlington
Data Sheet
0-1: $0.90
1-10: $0.80
10-100: $0.66
100-250: $0.58
BD682G
BD682G
ON Semiconductor
Transistors Darlington 4A 100V 40W PNP
Data Sheet
0-1: $0.33
1-25: $0.28
25-100: $0.20
100-500: $0.17
BD682S
BD682S
Fairchild Semiconductor
Transistors Darlington PNP Epitaxial Sil
Data Sheet
0-1: $0.34
1-25: $0.24
25-100: $0.20
100-250: $0.17
BD682STU
BD682STU
Fairchild Semiconductor
Transistors Darlington PNP Epitaxial Sil
Data Sheet
0-1: $0.29
1-25: $0.22
25-100: $0.16
100-250: $0.12
BD682T
BD682T
ON Semiconductor
Transistors Darlington 4A 100V 40W PNP
Data Sheet
Negotiable
BD682TG
BD682TG
ON Semiconductor
Transistors Darlington 4A 100V 40W PNP
Data Sheet
0-1: $0.41
1-25: $0.32
25-100: $0.28
100-500: $0.21
