Product Summary

The BC817-16 is a NPN transistor in a SOT23 plastic package. The applications of it are General purpose switching and amplification.

Parametrics

BC817-16 absolute maximum ratings: (1)collector-base voltage:50 V; (2)collector-emitter voltage:45 V; (3)emitter-base voltage:5V; (4)collector current:500 mA; (5)peak collector current:1A; (6)peak base current:200 mA; (7)total power dissipation:250 mW; (8)storage temperature:-65℃ to +150℃; (9)junction temperature:- 150℃; (10)operating ambient temperature:-65℃ to +150℃.

Features

BC817-16 features: (1)High current (max. 500 mA); (2)Low voltage (max. 45 V).

Diagrams

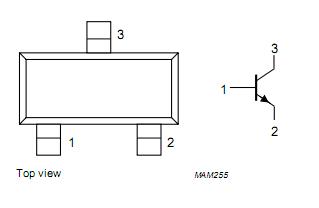

BC817-16 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BC817-16,215
BC817-16,215
NXP Semiconductors
Transistors Bipolar (BJT) NPN 45V 500mA
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BC817-16,235
BC817-16,235
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-13
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
bc817-16-25-40
bc817-16-25-40
Other

Data Sheet
Negotiable
BC817-16-7
BC817-16-7
Diodes Inc.
Transistors Bipolar (BJT) NPN BIPOLAR
Data Sheet
Negotiable
BC817-16-7-F
BC817-16-7-F
Diodes Inc.
Transistors Bipolar (BJT) NPN BIPOLAR
Data Sheet
0-1: $0.31
1-10: $0.22
10-100: $0.13
100-250: $0.09
BC817-16E6327
BC817-16E6327
Infineon Technologies
Transistors Bipolar (BJT) NPN 45 V 500 mA
Data Sheet
0-1: $0.11
1-10: $0.08
10-100: $0.05
100-500: $0.04
BC817-16LT1G
BC817-16LT1G
ON Semiconductor
Transistors Bipolar (BJT) 500mA 50V NPN
Data Sheet
0-1: $0.10
1-25: $0.08
25-100: $0.06
100-500: $0.03
BC817-16LT3
BC817-16LT3
ON Semiconductor
Transistors Bipolar (BJT) 500mA 50V NPN
Data Sheet
Negotiable
