BAS21

high-speed switching diode, SOD-323, 300 V, 250 mA, 550 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.02~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.02~0.02

PartNumber:: BAS21

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:BAS21
US $0.02 - 0.02
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

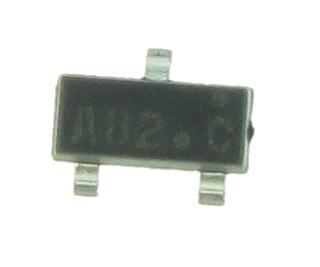

The BAS21 is a Single high-speed switching diode, encapsulated in a SOD323F (SC-90) very small and ﬂat lead Surface-Mounted Device (SMD) plastic package. The applications of the BAS21 include High-speed switching, Voltage clamping, General-purpose switching and Reverse polarity protection.

Parametrics

BAS21 absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 300 V; (2)VR, reverse voltage: 300 V; (3)IF, forward current: 250 mA; (4)IFRM, repetitive peak forward current: 1A; (5)IFSM, non-repetitive peak forward current: 2.3 A; (6)Ptot, total power dissipation: 550 mW; (7)Tj, junction temperature: 150℃; (8)Tamb, ambient temperature: -65 to +150℃; (9)Tstg, storage temperature: -65 to +150℃.

Features

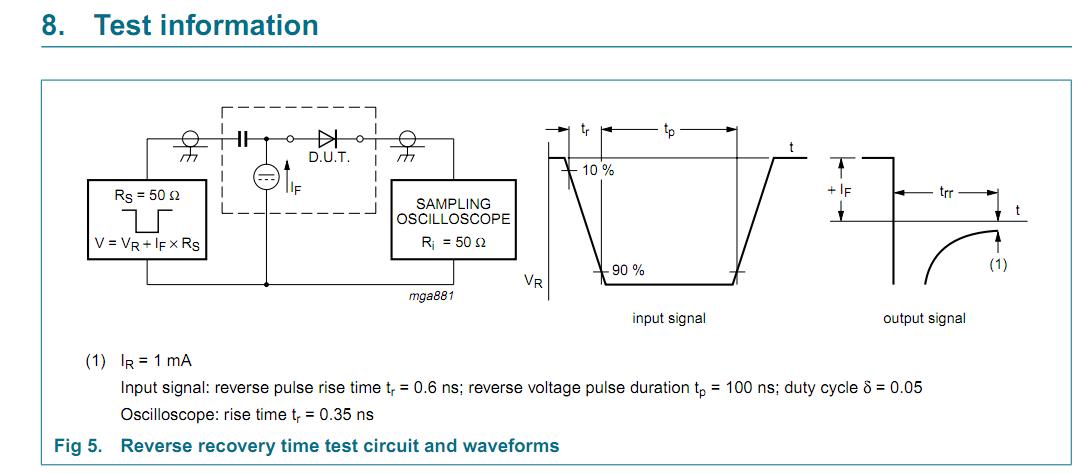

BAS21 features: (1)High switching speed: trr ≤ 50 ns; (2)Low leakage current; (3)Repetitive peak reverse voltage: VRRM ≤ 300 V; (4)Excellent coplanarity and improved thermal behavior; (5)Low capacitance: Cd ≤ 2pF; (6)Reverse voltage: VR ≤ 300 V; (7)Very small and ?at lead SMD plastic package.
