Product Summary

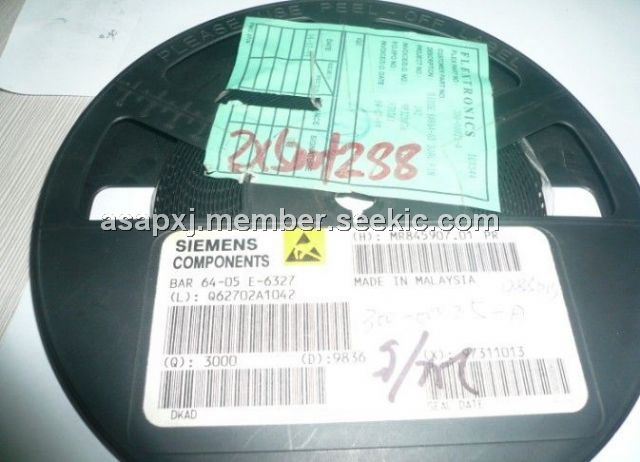

The BAR64-05 is a silicon PIN diode.
Parametrics
BAR64-05 absolute maximum ratings: (1)Diode reverse voltage VR: 150 V; (2)Forward current IF: 100 mA; (3)Junction temperature Tj: 150℃; (4)Operating temperature range Top: -55 to 125℃; (5)Storage temperature Tstg: -55 to 150℃.
Features
BAR64-05 features: (1)High voltage current controlled RF resistor for RF attenuator and switches; (2)Frequency range above 1 MHz up to 6 GHz; (3)Very low capacitance at zero volt reverse bias at frequencies above 1 GHz (typ. 0.17 pF); (4)Low forward resistance (typ. 2.1 @ 10 mA); (5)Very low signal distortion.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAR64-05W |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BAR64-05W E6327 |
Other |
|
Data Sheet |
Negotiable |
|
||||
