Product Summary
The AT93C86-10SI-2.7 is a 16K-bit E2PROM memory device which is configured as either register of 16 bits (ORG pin at VCC) or 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The AT93C86-10SI-2.7 is manufactured using Catalyst’s advanced CMOS E2PROM floating gate technology. The device is available in 8-pin DIP, 8-pin SOIC or 8-pin TSSOP packages.
Parametrics
AT93C86-10SI-2.7 absolute maximum ratings: (1)Temperature Under Bias: –55°C to +125°C; (2)Storage Temperature: –65°C to +150°C; (3)Voltage on any Pin with Respect to Ground: –2.0V to +VCC +2.0V; (4)VCC with Respect to Ground: –2.0V to +7.0V; (5)Package Power Dissipation Capability (Ta = 25°C): 1.0W; (6)Lead Soldering Temperature (10 secs): 300°C; (7)Output Short Circuit Current: 100 mA.
Features
AT93C86-10SI-2.7 features: (1)High Speed Operation: 3MHz; (2)Low Power CMOS Technology; (3)1.8 to 6.0 Volt Operation; (4)Selectable x8 or x16 Memory Organization; (5)Self-Timed Write Cycle with Auto-Clear; (6)Hardware and Software Write Protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT93C86-10SI-2.7 |
|

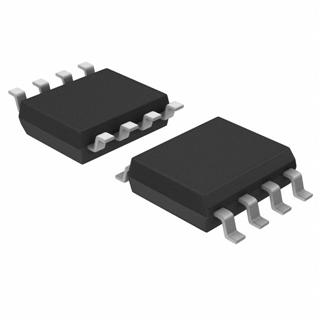

IC EEPROM 16KBIT 2MHZ 8SOIC |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
AT93C46 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AT93C46/56/57/66 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
AT93C46-10PC |
Atmel |
EEPROM 1/2/4k 3-Wire Bus |
Data Sheet |
Negotiable |
|
||||
 |
AT93C46-10PC-1.8 |
Atmel |
IC SEEPROM 1K 1.8V 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT93C46-10PC-2.5 |
Atmel |
IC SEEPROM 1K 2.5V 8DIP |
Data Sheet |
Negotiable |
|
||||
|
AT93C46-10PC-2.7 |
Atmel |
EEPROM 1/2/4k 3-Wire Bus |
Data Sheet |
Negotiable |
|
||||
