Product Summary
The AM26LV32EIPWR is a low-voltage high-speed quadruple differential line receiver with ±15-kv iec esd protection. It consists of quadruple differential line receivers with 3-state outputs. These differential receivers have ±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge) protection for RS422 bus pins. The AM26LV32EIPWR is designed to meet TIA/EIA-422-B and ITU recommendation V.11 drivers with reduced supply voltage. The AM26LV32EIPWR is optimized for balanced bus transmission at switching rates up to 32 MHz. The 3-state outputs permit connection directly to a bus-organized system.
Parametrics
AM26LV32EIPWR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 6 V; (2)VI Input voltage range Enable Inputs: –0.5 to 6 V; (3)VID Differential input voltage: –14 to 14 V; (4)VO Output voltage range: –0.5 to 6 V; (5)IIK Input clamp current range VI < 0: –20 mA; (6)IOK Output clamp current range VO < 0: –20 mA; (7)lO Maximum output current: ±20 mA; (8)TJ Operating virtual junction temperature: 150 ℃; (9)TA Operating free-air temperature range: –40 to 85 ℃; (10)Tstg Storage temperature range: –65 to 150 ℃.
Features
AM26LV32EIPWR features: (1)Meets or Exceeds Standard TIA/EIA-422-B and ITU Recommendation V.11; (2)Operates From a Single 3.3-V Power Supply; (3)ESD Protection for RS422 Bus Pins; (4)Switching Rates up to 32 MHz; (5)Low Power Dissipation: 27 mW Typ; (6)Open-Circuit, Short-Circuit, and Terminated Fail-Safe; (7)±7-V Common-Mode Input Voltage Range With ±200-mV Sensitivity; (8)Accepts 5-V Logic Inputs With 3.3-V Supply(Enable Inputs); (9)Input Hysteresis: 35 mV Typ; (10)Pin-to-Pin Compatible With AM26C32, AM26LS32; (11)Ioff Supports Partial-Power-Down Mode Operation.

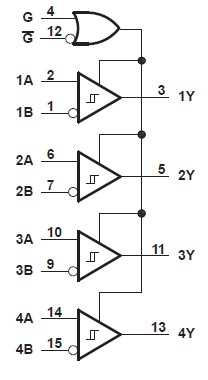

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AM26LV32EIPWR |
Texas Instruments |
Bus Receivers LoVltg Hi-Sp Quad Diff Line Drvr |
Data Sheet |
|
|
||||||||||||
|
AM26LV32EIPWRG4 |
Texas Instruments |
Bus Receivers LoVltg Hi-Sp Quad Diff Line Drvr |
Data Sheet |
|
|
||||||||||||
