Product Summary

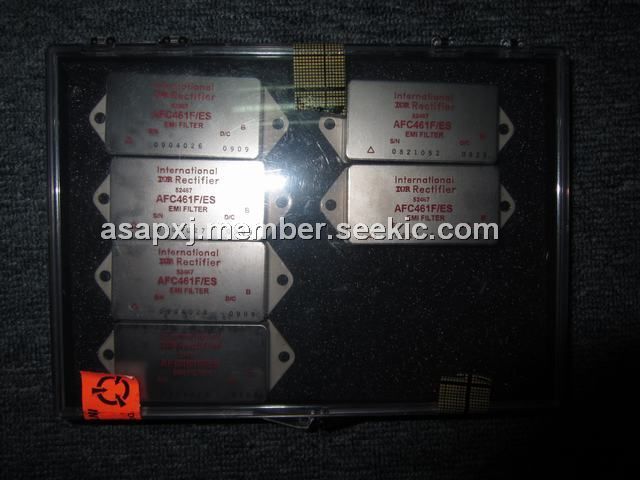

The AFC461F/ES is an advanced analog emi filter. It reduces the input line reflected ripple current of the AHV, ATO, ATW, ATR, and AHF line of DC/DC converters to levels below the CEO3 limits of MIL-STD-461. The AFC461F/ES is manufactured in a facility certified to MIL-PRF-38534. All purposes used to manufacture the AFC461F/ES has been qualified to enable Advanced Analog to deliver compliant devices.
Parametrics
AFC461F/ES specifications: (1)Input Voltage: 0 to 40 VDC; (2)Input Current DC: 4.0 Amps, Ripple: 1.0 Amps RMS; (3)Input Clamping Voltage: 38.9 to 44.9 VDC; (4)Output Current: 4.0 Amps; (5)DC Resistance (RDC): 0.07 to 0.15 Ohms; (6)Power Dissipation: 1.6 Watts; (7)Noise Reduction: 40 dB; (8)Capacitance: 4200 pF; (9)Isolation: 100 MΩ; (10)Operating Temperature: -55 to 125 ℃; (11)Storage Temperature: -65 to 150 ℃.
Features
AFC461F/ES features: (1)4.0 amp Input Current - max.; (2)40 dB Noise Reduction min. @100 KHz; (3)-55℃ to +125℃ Operation; (4)Military Screening; (5)Compatible with ATW, AHE, ATO, ATR and AHF Series DC/DC Converters; (6)No Derating for -55℃ to +125℃ Operation; (7)No Tantalum Capacitors for High Reliability.
Diagrams
 |
