Product Summary
The ADM211ARS is a 0.1μF, +5V powered CMOS RS-232 driver/receiver. The ADM211ARS is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM205, ADM206, ADM211 and ADM213 feature a low power shutdown mode which reduces power dissipation to less than 5 mW making them ideally suited for battery powered equipment. The ADM211ARS does not require any external components and is particularly useful in applications where printed circuit board space is critical. The ADM211ARS has an active-low shutdown. Two receivers of the ADM211ARS remain active during shutdown. This feature is useful for ring indicator monitoring.
Parametrics
ADM211ARS absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V–: +0.3V to –14V; (4)Input Voltages: TIN: –0.3 V to (VCC + 0.3 V), RIN: ±30 V; (5)Output Voltages : TOUT: (V+, + 0.3 V) to (V–, –0.3 V), ROUT: –0.3 V to (VCC + 0.3 V); (6)Short Circuit Duration TOUT: Continuous; (7)Power Dissipation RS-28 SSOP (Derate 10 mW/℃ above +70℃): 900 mW; (8)Thermal Impedance, θJA RS-28 SSOP: 100℃/W; (9)Operating Temperature Range Industrial (A Version): -40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Lead Temperature, Soldering: +300℃; (12)Vapour Phase (60 sec): +215℃; (13)Infrared (15 sec): +220℃; (14)ESD Rating: ＞2000V.
Features
ADM211ARS features: (1)0.1 mF to 10 mF Capacitors; (2)120 kB/s Data Rate; (3)2 Receivers Active in Shutdown; (4)On-Board DC-DC Converters; (5)69 V Output Swing with +5 V Supply; (6)Low Power (15 mW); (7)Low Power Shutdown ≤5 μW; (8)630 V Receiver Input Levels; (9) Latch-Up FREE; (10) Plug-In Upgrade for MAX205-211/213.

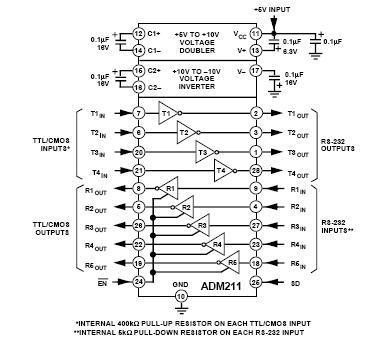

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM211ARS |
|
IC TX/RX RS-232 5V 0.1UF 28SSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADM211ARS-REEL |
|
IC TXRX RS-232 5V 0.1UF 28SSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
ADM211ARSZ |
|
IC TX/RX RS-232 5V 0.1UF 28SSOP |
Data Sheet |
|
|
||||||||||||||||||
|
ADM211ARSZ-REEL |
|
IC TXRX RS-232 5V 0.1UF 28SSOP |
Data Sheet |
|
|
||||||||||||||||||
