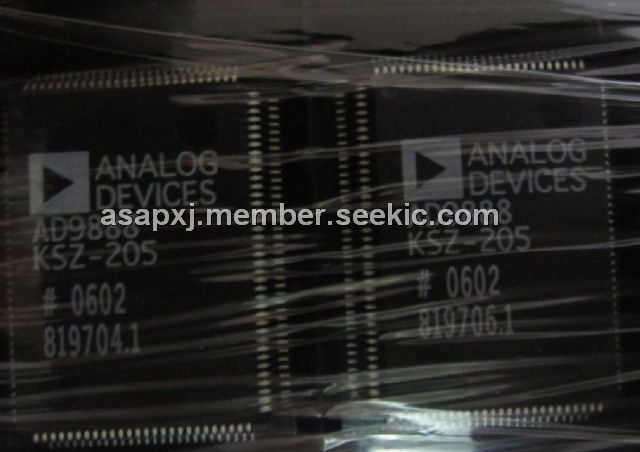

AD9888KSZ-205

8-bit, 205 MSPS monolithic, Analog Flat Panel Interface, QFP, 20mA, 3.6V, 500 MHz Programmable Analog Bandwidth

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.92~7.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.92~7.95

PartNumber:: AD9888KSZ-205

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:AD9888KSZ-205
US $7.92 - 7.95
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

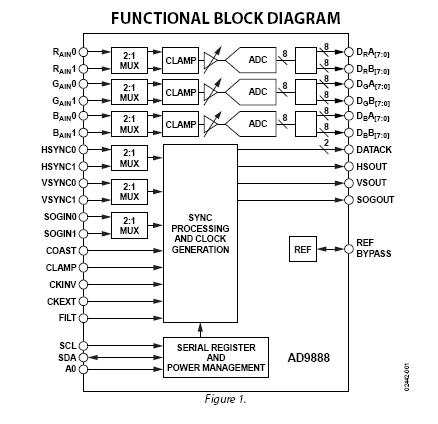

The AD9888KSZ-205 is a complete 8-bit, 205 MSPS monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. The AD9888KSZ-205’s 205 MSPS encode rate capability and full-power analog bandwidth of 500 MHz supports resolutions up to UXGA (1600 × 1200 at 75 Hz). For ease of design and to minimize cost, the AD9888KSZ-205 is a fully integrated interface solution for flat panel displays. The AD9888KSZ-205 includes an analog interface with a 205 MHz triple ADC with internal 1.25 V reference, PLL to generate a pixel clock from HSYNC and COAST, midscale clamping, and programmable gain, offset, and clamp control.

Parametrics

AD9888KSZ-205 absolute maximum ratings: (1)VD: 3.6V; (2)VDD: 3.6V; (3)Analog Inputs: VD to 0.0V; (4)VREF IN: VD to 0.0V; (5)Digital Inputs: 5V to 0.0V; (6)Digital Output Current: 20mA; (7)Operating Temperature: –25℃ to +85℃; (8)Storage Temperature: –65℃ to +150℃; (9)Maximum Junction Temperature: 150℃; (10)Maximum Case Temperature: 150℃.

Features

AD9888KSZ-205 features: (1)170 MSPS Maximum Conversion Rate; (2)500 MHz Programmable Analog Bandwidth; (3)0.5 V to 1.0 V Analog Input Range; (4)Less than 450 ps p-p PLL Clock Jitter @ 205 MSPS; (5)3.3 V Power Supply; (6)Full Sync Processing; (7)2:1 Analog Input Mux; (8)4:2:2 Output Format Mode; (9)Midscale Clamping; (10)Power-Down Mode; (11)Low Power: <1 W Typical @ 205 MSPS.
