AD7904BRUZ-REEL

Product Summary

The AD7904BRUZ-REEL is respectively, 8-bit, high speed, low power, 4-channel, successive-approximation ADC. The AD7904BRUZ-REEL operates from a single 2.7 V to 5.25 V power supply and feature throughput rates up to 1 MSPS. It contains a low noise, wide bandwidth track/hold amplifier that can handle input frequencies in excess of 8 MHz. The conversion process and data acquisition are controlled using CS and the serial clock signal, allowing the AD7904BRUZ-REEL to easily interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and conversion is also initiated at this point. There are no pipeline delays associated with the part.

Parametrics

AD7904BRUZ-REEL absolute maximum ratings: (1)AVDD to AGND: –0.3 V to +7 V; (2)VDRIVE to AGND: –0.3 V to AVDD + 0.3 V; (3)Analog Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (4)Digital Input Voltage to AGND: –0.3 V to +7 V; (5)Digital Output Voltage to AGND: –0.3 V to AVDD + 0.3 V; (6)REFIN to AGND: –0.3 V to AVDD + 0.3 V; (7)Input Current to Any Pin Except Supplies2: ±10 mA; (8)Operating Temperature Range: Commercial (B Version): –40℃ to +85℃; (9)Storage Temperature Range: –65℃ to +150℃; (10)Junction Temperature: 150℃; (11)TSSOP Package, Power Dissipation: 450 mW; (12)θJA Thermal Impedance: 150.4℃/W (TSSOP); (13)θJC Thermal Impedance: 27.6℃/W (TSSOP); (14)Lead Temperature, Soldering; (15)Vapor Phase (60 secs): 215℃; (16)Infrared (15 secs): 220℃; (17)ESD: 2 kV.

Features

AD7904BRUZ-REEL features: (1)Fast Throughput Rate: 1 MSPS; (2)Specified for VDD of 2.7 V to 5.25 V; (3)Low Power: 6 mW max at 1 MSPS with 3 V Supplies, 13.5 mW max at 1 MSPS with 5 V Supplies; (4)4 (Single-Ended) Inputs with Sequencer; (5)Wide Input Bandwidth: AD7924, 70 dB SNR at 50 kHz Input Frequency; (6)Flexible Power/Serial Clock Speed Management; (7)No Pipeline Delays; (8)High Speed Serial Interface SPI/QSPI/MICROWIRE/DSP Compatible; (9)Shutdown Mode: 0.5 μA Max; (10)16-Lead TSSOP Package.

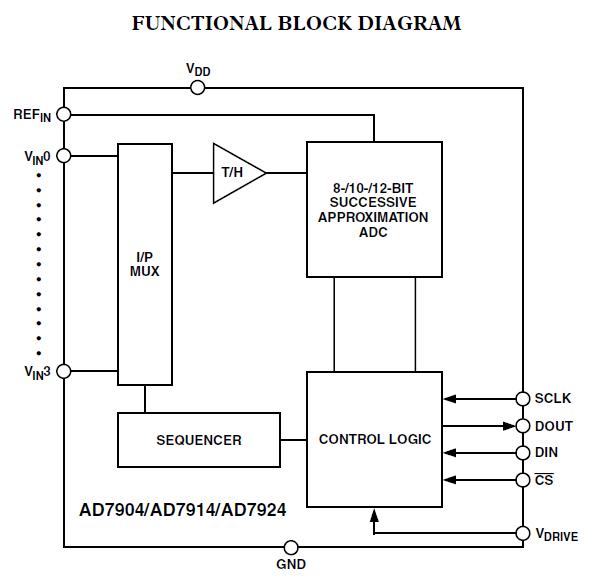

Diagrams
