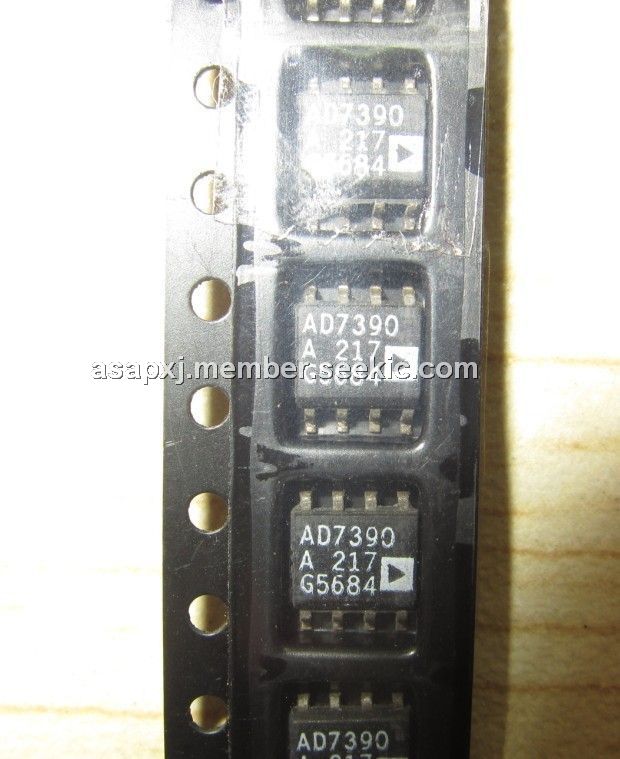

Product Summary

The AD7390AR is a 3 V Serial-Input Micropower 10-Bit and 12-Bit DAC. The AD7390AR of 10-bit voltage output digital-to-analog converters is designed to operate from a single 3 V supply. Built using a CBCMOS process, these monolithic DACs offer the user low cost, and ease-of-use in single-supply 3 V systems. Operation is guaranteed over the supply voltage range of 2.7 V to 5.5 V consuming less than 100 μA making this device ideal for battery operated applications. The applications of the AD7390AR include: Automotive 0.5 V to 4.5 V Output Span Voltage, Portable Communications, Digitally Controlled Calibration.

Parametrics

AD7390AR absolute maximum ratings: (1)VDD to GND:-0.3 V, +8 V; (2)VREF to GND:+0.3 V, VDD+0.3 V; (3)Logic Inputs to GND:-0.3 V, +8 V; (4)VOUT to GND:-0.3 V, VDD+0.3 V; (5)IOUT Short Circuit to GND:50 mA; (6)Package Power Dissipation:(TJ MAX-TA)/θJA; (7)Thermal Resistance θJA; (8)8-Lead Plastic DIP Package (N-8):103℃/W; (9)8-Lead SOIC Package (SO-8):158℃/W; (10)TSSOP-8 Package (RU-8):240℃/W; (11)Maximum Junction Temperature (TJ MAX):150℃; (12)Operating Temperature Range:-40℃ to +85℃; (13)AD7391AR:-40℃to +125℃; (14)Storage Temperature Range:-65℃ to +150℃; (15)Lead Temperature (Soldering, 10 secs):300℃.

Features

AD7390AR features: (1)Micro power—100 μA; (2)Single-Supply—2.7 V to 5.5 V Operation; (3)Compact 1.75mm Height SO-8 Package and 1.1mm Height TSSOP-8 Package; (4)AD7390—12-Bit Resolution; (5)SPI and QSPI Serial Interface Compatible with Schmitt; (6)Trigger Inputs.

Diagrams

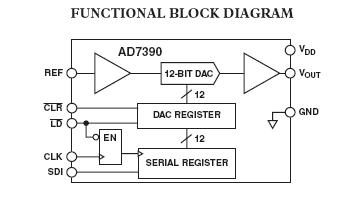

AD7390AR block diagram
