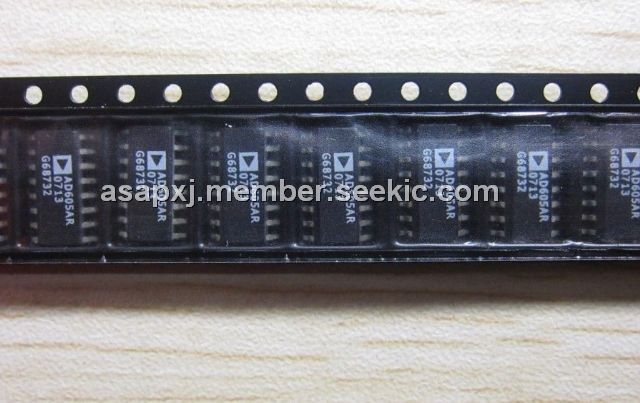

AD605AR

AD, Dual, Low Noise, Single-Supply Variable Gain Amplifier, 6.5V, 1.2W, 16-Lead SOIC_N

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~0.96 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.95~0.96

PartNumber:: AD605AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:AD605AR
US $0.95 - 0.96
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

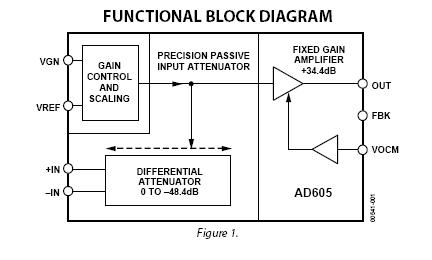

The AD605AR is a low noise, accurate, dual-channel, linear-in-dB variable gain amplifier (VGA), optimized for any application requiring high performance, wide bandwidth variable gain control. Operating from a single 5 V supply, the AD605AR provides differential inputs and unipolar gain control for ease of use. Added flexibility is achieved with a user-determined gain range and an external reference input that provide user-determined gain scaling (dB/V).The applications of the AD605AR include Ultrasound and sonar time-gain controls, High performance AGC systems, Signal measurement.

Parametrics

AD605AR absolute maximum ratings: (1)Supply Voltage +VS, Pin 12, Pin 13 (with Pin 4, Pin 5 = 0 V): 6.5 V; (2)Input Voltage Pin 1 to Pin 3, Pin 6 to Pin 9, Pin 16: VPOS, 0 V; (3)Internal Power Dissipation: 16-Lead SOIC_N:1.2 W; (4)Operating Temperature Range:-40℃ to +85℃; (5)Storage Temperature Range:-65℃ to +150℃; (6)Lead Temperature, Soldering 60 sec: 300℃; (7)Thermal Resistance θJA: 16-Lead SOIC_N:100℃/W.

Features

AD605AR features: (1)2 independent linear-in-dB channels; (2)Input noise at maximum gain: 1.8 nV/√Hz, 2.7 pA/√Hz; (3)Bandwidth: 40 MHz (-3 dB); (4)Differential input; (5)Absolute gain range programmable; (6)-14 dB to +34 dB (FBK shorted to OUT) through; (7)0 dB to 48 dB (FBK open); (8)Variable gain scaling: 20 dB/V through 40 dB/V; (9)Stable gain with temperature and supply variations; (10)Single-ended unipolar gain control; (11)Output common mode independently set; (12)Power shutdown at lower end of gain control; (13)Single 5 V supply; (14)Low power: 90 mW/channel; (15)Drives ADCs directly.
