Product Summary
The AD5233BRU50 is a nonvolatile memory digital potentiometer. The AD5233BRU50 provides a quad-channel, digitally controlled variable resistor (VR) with resolutions of 64 positions respectively. These devices of the AD5233BRU50 perform the same electronic adjustment function as a potentiometer or variable resistor. The AD523X’s versatile programming via a Micro Controller allows multiple modes of operation and adjustment. The applications of the AD5233BRU50 include: Mechanical Potentiometer Replacement, Instrumentation: Gain, Offset Adjustment, Programmable Voltage to Current Conversion, Programmable Filters, Delays, Time Constants, Line Impedance Matching, Power Supply Adjustment, DIP Switch Setting.
Parametrics
AD5233BRU50 absolute maximum ratings: (1)VDD to GND:-0.3V, +7V; (2)VSS to GND:0V, -7V; (3)VDD to VSS:+7V; (4)VA, VB, VW to GND: VSS, VDD AX–BX, AX–WX, BX–WX; (5)Intermittent:±20mA; (6)Continuous:±1.3mA; (7)Ox to GND:0V,VDD; (8)Digital Inputs & Output Voltage to GND:0V,+7V; (9)Operating Temperature Range:-40℃ to 85℃; (10)Maximum Junction Temperature (TJ MAX):+150℃; (11)Storage Temperature:-65℃ to 150℃; (12)Lead Temperature (Soldering, 10 sec):+300℃; (13)Package Power Dissipation:(TJMAX - TA) / θJA; (14)Thermal Resistance θJA:TSSOP-16:150℃/W,TSSOP-24:128℃/W.
Features
AD5233BRU50 features: (1) Nonvolatile Memory Preset Maintains Wiper Settings; (2)AD5233 Quad, 64 Position Resolution; (3)10K, 50K, 100K Ohm Terminal Resistance; (4)Linear or Log taper Settings; (5)Increment/Decrement Commands, Push Button Command; (6)SPI Compatible Serial Data Input with Read back Function; (7)+3 to +5V Single Supply or ±2.5V Dual Supply Operation; (8)User EEMEM nonvolatile memory for constant storage.

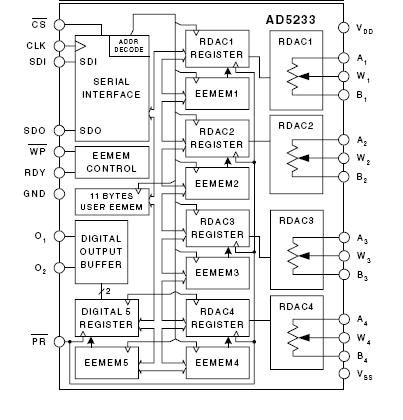

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD5233BRU50 |
Analog Devices Inc |
IC POT QUAD 50K 64POS 24-TSSOP |
Data Sheet |
Negotiable |
|
||||
|
AD5233BRU50-REEL7 |
Analog Devices Inc |
IC DGTL POT QUAD 64POS 24-TSSOP |
Data Sheet |
Negotiable |
|
||||
