Product Summary

The AD202JY is a general purpose, two-port, transformer-coupled isolation amplifier that may be used in a broad range of applications where input signals must be measured, processed and/or transmitted without a galvanic connection. Applications of the AD202JY are: Multichannel Data Acquisition, Current Shunt Measurements, Motor Controls, Process Signal Isolation, high Voltage Instrumentation Amplifier.

Parametrics

AD202JY absolute maximum ratings: (1)Frequency: 25 kHz Nominal; (2)Voltage: 15 V p-p Nominal; (3)Fan-Out: 32 max; (4)Input Voltage: +15 V ± 5%; (5)Supply Current: Unloaded: 35 mA, Each AD204 Adds: 2.2 mA, Each 1 mA Load on AD204 +VISO or –VISO Adds: 0.7 mA.

Features

AD202JY features: (1)Small Size: 4 Channels/lnch; (2)Low Power: 35 mW (AD204); (3)High Accuracy: ±0.025% max Nonlinearity (K Grade); (4)High CMR: 130 dB (Gain = 100 V/V); (5)Wide Bandwidth: 5 kHz Full-Power (AD204); (6)High CMV Isolation: ±2000 V pk Continuous (K Grade) (Signal and Power); (7)Isolated Power Outputs; (8)Uncommitted Input Amplifier.

Diagrams

AD202JY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

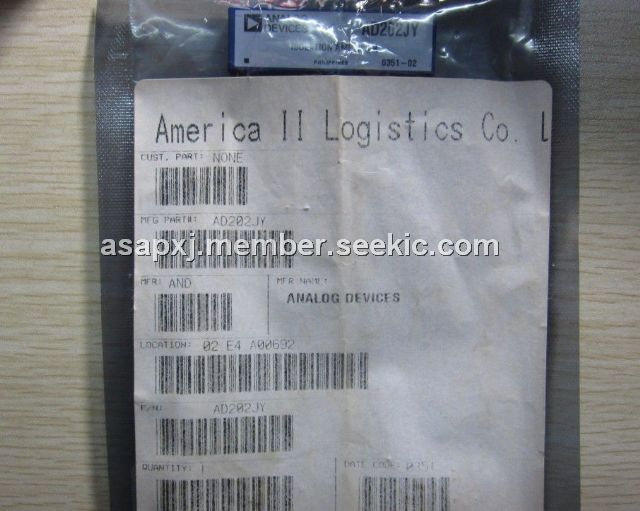

AD202JY
AD202JY


IC ISOL AMP 2-PORT 2KHZ 38-SIP

Data Sheet

0-1: $29.55
1-10: $27.81
10-100: $24.86
100-250: $23.47
250-500: $23.18
