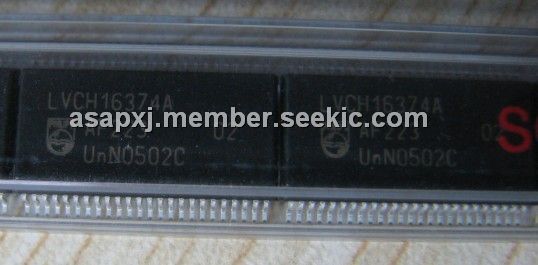

74LVCH16374ADL+112

SSOP, 16-bit, edge-triggered flip-flop

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: 74LVCH16374ADL+112

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:74LVCH16374ADL+112
US $0.10 - 1.00
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74LVCH16374ADL+112 is 16-bit edge-triggered flip-flop featuring separate D-type inputs with bus hold (74LVCH16374ADL+112 only) for each flip-flop and 3-state outputs for bus oriented applications. It consists of two sections of eight positive edge-triggered flip-flops. A clock input (nCP) and an output enable (nOE) are provided for each octal. The flip-flop of the 74LVCH16374ADL+112 will store the state of their individual D-inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. When pin nOE of the 74LVCH16374ADL+112 is LOW, the contents of the flip-flops are available at the outputs.

Parametrics

74LVCH16374ADL+112 absolute aximum ratings: (1)VCC, supply voltage: -0.5 min. +6.5 V max.; (2)IIK, input clamping current: VI < 0 V -50 mA min.; (3)VI, input voltage: -0.5 min. +6.5 V max.; (4)IOK, output clamping current: VO > VCC or VO < 0 V ±50 mA max.; (5)VO, output voltage: output HIGH-or LOW-state -0.5 min. VCC + 0.5 V max.; (6)output 3-state [2] -0.5 min. +6.5 V max.; (7)IO, output current: VO = 0 V to VCC - ±50 mA max.; (8)ICC, supply current: - 100 mA max.; (9)IGND, ground current: -100 mA min.; (10)Tstg, storage temperature: -65 min. +150℃ max.

Features

74LVCH16374ADL+112 features: (1)5 V tolerant inputs/outputs for interfacing with 5 V logic; (2)Wide supply voltage range from 1.2 V to 3.6 V; (3)CMOS low power consumption; (4)Multibyte flow-through standard pin-out architecture; (5)Low inductance multiple supply pins for minimum noise and ground bounce; (6)Direct interface with TTL levels; (7)All data inputs have bus hold (74LVCH16374A only); (8)High-impedance outputs when VCC = 0 V; (9)Complies with JEDEC standard JESD8-B/JESD36; (10)ESD protection: HBM JESD22-A114F exceeds 2000 V; CDM JESD22-C101D exceeds 1000 V; (11)Specified from -40℃ to +85℃ and -40℃ to +125℃.
