Product Summary
The 74LS10 is a Triple 3-Input NAND Gate. This device contains three independent gates each of which performs the logic NAND function.
Parametrics
74LS10 absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Operating Free Air Temperature Range: 0 to +70℃; (4)Storage Temperature Range: -65 to +150℃.
Features
74LS10 features: (1)VI, Input Clamp Voltage: -1.5 V when VCC = Min, II= -18 mA; (2)VOH, HIGH Level: 2.7V min, 3.4 V typ when VCC = Min, IOH = Max; Output Voltage: 2.7V min, 3.4V typ when VIL = Max; (3)VOL, LOW Level: 0.35V typ, 0.5V max at VCC = Min, IOL = Max, VIH=min; Output Voltage: 0.25V typ, 0.4V max at IOL = 4 mA, VCC = Min; (4)II, Input Current @ Max Input Voltage: 0.1mA max at VCC = Max, VI = 7V; (5)IIH, HIGH Level Input Current: 20μA at VCC = Max, VI = 2.7V; (6)IIL, LOW Level Input Current: -0.36mA at VCC = Max, VI = 0.4V; (7)IOS, Short Circuit Output Current: -20 to -100mA at VCC = Max; (8)ICCH, Supply Current with Outputs High: 0.6mA typ; 1.2mA max at VCC = Max; (9)ICCL, Supply Current with Outputs Low: 1.8mA typ; 3.3mA at VCC = Max.

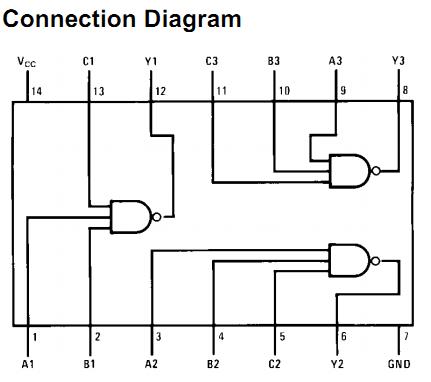

Diagrams
