Product Summary

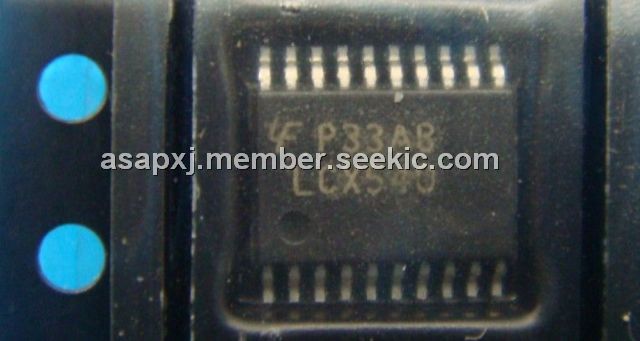

The 74LCX540MTCX is a low voltage octal buffer/line driver with 5v tolerant inputs and outputs. It is designed to be employed as a memory and address driver, clock driver and bus oriented transmitter/receiver. The 74LCX540MTCX is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. It is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Parametrics
74LCX540MTCX absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to +7.0 V; (2)VI DC Input Voltage: -0.5 to +7.0 V; (3)On the condition of VI < GND, IIK DC Input Diode Current: -50 mA; (4)IO DC Output Source/Sink Current: ±50 mA; (5)ICC DC Supply Current per Supply Pin: ±100 mA; (6)IGND DC Ground Current per Ground Pin: ±100 mA; (7)TSTG Storage Temperature: -65 to +150 ℃.
Features
74LCX540MTCX features: (1)5V tolerant inputs and outputs; (2)2.3V–3.6V VCC specifications provided; (3)6.5 ns tPD max (VCC=3.3V), 10 μA ICC max; (4)Power down high impedance inputs and outputs; (5)Supports live insertion/withdrawal; (6)Implements patented noise/EMI reduction circuitry; (7)Latch-up performance exceeds JEDEC 78 conditions; (8)ESD performance: Human body model > 2000V; Machine model > 200V; (9)Leadless Pb-Free DQFN package.

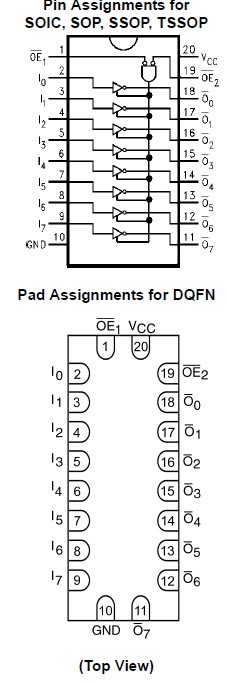

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LCX540MTCX |
Fairchild Semiconductor |
Buffers & Line Drivers Octal Buff/Line Drv |
Data Sheet |
|
|
||||||||||||||||||
