Product Summary
The 74HCU04D is a hex inverter. The 74HCU04D is high-speed Si-gate CMOS devices and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard No. 7A. The 74HCU04D is a general purpose hex inverter. Each of the six inverters is a single stage.
Parametrics
74HCU04D absolute maximum ratings: (1)supply voltage: -0.5V to +7.0V; (2)input clamping current VI＜ -0.5V or VI＞VCC + 0.5V: ±20mA; (3)output clamping current VO＜-0.5V or VO＞VCC + 0.5V: ±50mA; (4)output current -0.5V＜VO＜VCC + 0.5V: ±25mA; (5)supply current: 50mA (max); (6)ground current: -50mA (min); (7)storage temperature: -65℃ to +150℃; (8)Total power dissipation: DIP14 package: 750mW, SO14, (T) SSOP14 and DHVQFN14 packages: 500mW.
Features
74HCU04D features: (1)Balanced propagation delays; (2)ESD protection: HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V; (3)Multiple package options; (4)Specified from -40℃ to +125℃.

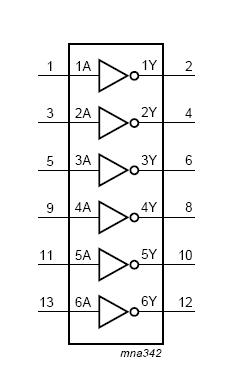

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCU04D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HCU04D,652 |
NXP Semiconductors |
Inverters HEX INVERTER (UNBUF) |
Data Sheet |
|
|
||||||||||||
|
74HCU04D,653 |
NXP Semiconductors |
Inverters HEX INVERTER UNBUFF |
Data Sheet |
|
|
||||||||||||
|
74HCU04DB,112 |
NXP Semiconductors |
Inverters HEX INVERTER (UNBUF) |
Data Sheet |
|
|
||||||||||||
|
74HCU04DB,118 |
NXP Semiconductors |
Inverters HEX INVERTER (UNBUF) |
Data Sheet |
|
|
||||||||||||
|
74HCU04DB |
NXP Semiconductors |
Inverters HEX INVERTER (UNBUF) |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HCU04DR2G |
ON Semiconductor |
Inverters HEX UNBUFFED INVERTR |
Data Sheet |
|
|
||||||||||||
 |
74HCU04DTR2G |
ON Semiconductor |
Inverters HEX UNBUFFED INVERTR |
Data Sheet |
|
|
||||||||||||
