Product Summary
The 74HCT374D is an octal D-type flip-flop positive edge-trigger. The 74HCT374D is a high-speed Si-gate CMOS device and is a pin compatible with low power Schottky TTL (LSTTL). The 74HCT374D is specified in compliance with JEDEC standard no. 7A. It features separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A clock (CP) and an output enable (OE) input are common to all flip-flops.
Parametrics
74HCT374D absolute maximum ratings: (1) tPHL/tPLH propagation delay CP to Qn: CL=15pF, VCC=5V, HCT=13ns; (2) fmax maximum clock frequency: HCT=48MHz; (3) CI: HCT=3.5pF; (4) CPD: HCT=17pF.
Features
74HCT374D features: (1)3-state non-inverting outputs for bus oriented applications; (2)8-bit positive, edge-triggered register; (3)Common 3-state output enable input; (4)Independent register and 3-state buffer operation; (5)Output capability: bus driver; (6)ICC category: MSI.

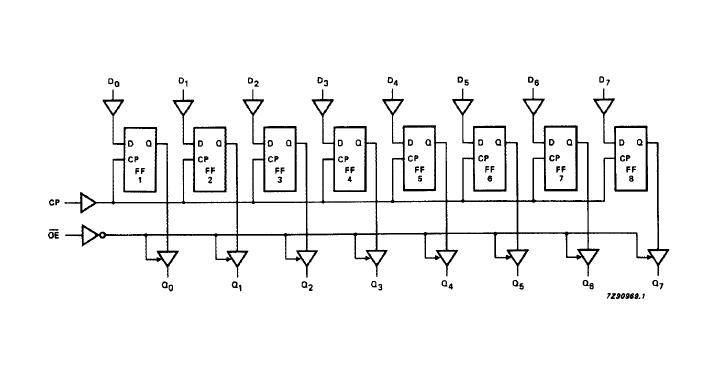

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCT374D |
NXP Semiconductors |
Flip Flops OCTAL D F/F 3STATE |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HCT374D,652 |
NXP Semiconductors |
Flip Flops OCTAL D F/F 3STATE |
Data Sheet |
|
|
||||||||||||
|
74HCT374DB,118 |
NXP Semiconductors |
Flip Flops OCTAL D 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HCT374D,653 |
NXP Semiconductors |
Flip Flops OCTAL D F/F 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HCT374DB,112 |
NXP Semiconductors |
Flip Flops OCTAL D 3-STATE |
Data Sheet |
|
|
||||||||||||
|
74HCT374DB |
NXP Semiconductors |
Flip Flops OCTAL D 3-STATE |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HCT374DB-T |
NXP Semiconductors |
Flip Flops OCTAL D 3-STATE |
Data Sheet |
Negotiable |
|
||||||||||||
