74HC373D

Si-gate CMOS device, SOP, 3-state

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: 74HC373D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:74HC373D
US $0.10 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

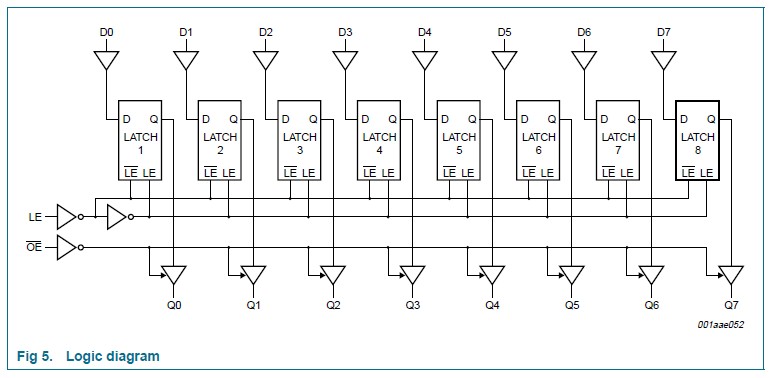

The 74HC373D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC373D is an octal D-type transparent latches featuring separate D-type inputs for each latch and 3-state outputs for bus oriented applications. A latch enable (LE) input and an output enable (OE) input are common to all latches.

Parametrics

74HC373D absolute maximum ratings: (1)supply voltage: -0.5 to +7 V; (2)input clamping current: ±20 mA at VI < -0.5 V or VI > VCC + 0.5 V; (3)output clamping current: ±20 mA at VO < -0.5 V or VO > VCC + 0.5 V; (4)output current: ±35 mA at VO = -0.5 V to VCC + 0.5 V; (5)quiescent supply current: ±70 mA; (6)ground current: -70 mA; (7)storage temperature: -65 to +150 ℃; (8)total power dissipation: DIP20 package: 750 mW, SO20 package: 500 mW, (T)SSOP20 package: 500 mW, DHVQFN20 package: 500 mW.

Features

74HC373D features: (1)3-state non-inverting outputs for bus oriented applications; (2)Common 3-state output enable input; (3)Functionally identical to the "563", "573" and "533"; (4)Output capability: bus driver; (5)ICC category: MSI.
