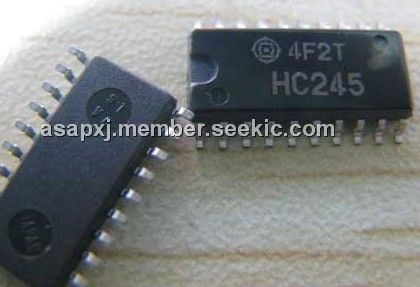

74HC245

Octal bus transceiver, 3-state, SOP, Octal bidirectional bus interface, -0.5 to +7 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~2.50

PartNumber:: 74HC245

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:74HC245
US $0.00 - 2.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74HC245 is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). The 74HC245 is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74HC245 features an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control. OE controls the outputs so that the buses are effectively isolated. The 74HC245 is similar to the 74HC640; 74HCT640 but has true (non-inverting) outputs.

Parametrics

74HC245 absolute maximum ratings: (1)VCC supply voltage: -0.5 +7 V; (2)IIK input diode current VI < -0.5 V or VI > VCC + 0.5 V: ±20mA; (3)IOK output diode current VO < -0.5 V or VO > VCC + 0.5 V: ±20 mA; (4)IO output source or sink current, VO = -0.5 V to VCC + 0.5 V:±35 mA; (5)ICC, IGND VCC or GND current: ±70 mA; (6)Tstg storage temperature: -65 to +150℃; (7)Ptot total power dissipation, DIP20 package: - 750 mW; SO20, SSOP20, TSSOP20 and DHVQFN20 packages: - 500 mW.

Features

74HC245 features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)u HBM EIA/JESD22-A114-B exceeds 2000 V; (6)u MM EIA/JESD22-A115-A exceeds 200 V; (7)Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃.
