Product Summary

The 74FCT3807SO 3.3V clock driver is built using advanced dual metal CMOS technology. This low skew clock driver offers 1:10 fanout. The large fanout from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. The 74FCT3807SO offers low capacitance inputs with hysteresis for improved noise margins. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.

Parametrics

74FCT3807SO absolute maxing ratings: (1)VTERM Terminal Voltage with Respect to GND: –0.5 to +4.6 V; (2)VTERM Terminal Voltage with Respect to GND: –0.5 to +7 V; (3)VTERM Terminal Voltage with Respect to GND: –0.5 to VCC+0.5 V; (4)TSTG Storage Temperature –65 to +150 ℃; (5)IOUT DC Output Current –60 to +60 mA.

Features

74FCT3807SO features: (1)0.5 MICRON CMOS Technology; (2)Guaranteed low skew < 350ps (max.); (3)Very low duty cycle distortion < 350ps (max.); (4)High speed: propagation delay < 3ns (max.); (5)Very low CMOS power levels; (6)TTL compatible inputs and outputs; (7)1:10 fanout; (8)Maximum output rise and fall time < 1.5ns (max.); (9)Low input capacitance: 4.5pF typical; (10)VCC = 3.3V±0.3V; (11)Inputs can be driven from 3.3V or 5V components; (12)Available in SSOP, SOIC, and QSOP packages.

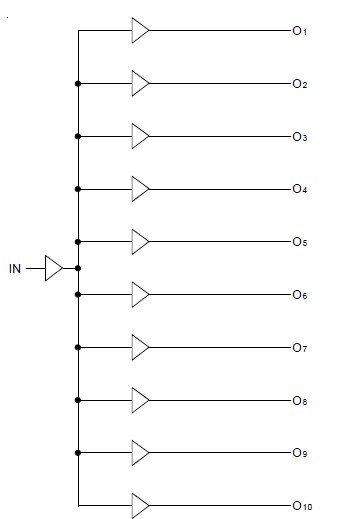

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74FCT3807SOG
74FCT3807SOG
IDT
Clock Drivers & Distribution 3.3V 1:10 Clock Driver
Data Sheet
0-1: $1.03
1-10: $0.82
10-100: $0.63
100-500: $0.56
74FCT3807SOI8
74FCT3807SOI8
Other

Data Sheet
Negotiable
74FCT3807SOI
74FCT3807SOI
Other

Data Sheet
Negotiable
74FCT3807SO8
74FCT3807SO8
Other

Data Sheet
Negotiable
74FCT3807SO
74FCT3807SO
Other

Data Sheet
Negotiable
74FCT3807SOGI8
74FCT3807SOGI8
Other

Data Sheet
Negotiable
74FCT3807SOGI
74FCT3807SOGI
Other

Data Sheet
Negotiable
74FCT3807SOG8
74FCT3807SOG8
Other

Data Sheet
Negotiable
