Product Summary

The 6N136SD is a high speed transistor optocoupler. It consists of an AlGaAs LED optically coupled to a high speed photodetector transistor. The applications of the 6N136SD include: (1)Line receivers; (2)Pulse transformer replacement; (3)Output interface to CMOS-LSTTL-TTL; (4)Wide bandwidth analog coupling.

Parametrics

6N136SD absolute maximum ratings: (1)Storage Temperature TSTG: -55 to +125℃; (2)Operating Temperature TOPR: -55 to +100℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)DC/Average Forward Input Current Each Channel IF(avg): 25mA; (5)Peak Forward Input Current (50% duty cycle, 1 ms P.W.) Each Channel IF(pk): 50mA; (6)Peak Transient Input Current - (≤1μs P.W., 300 pps) IF(trans): 1.0 A; (7)Reverse Input Voltage Each Channel VR: 5V; (8)Input Power Dissipation PD: 100mW.

Features

6N136SD features: (1)High speed-1 MBit/s; (2)Superior CMR-10 kV/μs; (3)Dual-Channel HCPL-2530/HCPL-2531; (4)Double working voltage-480V RMS; (5)CTR guaranteed 0-70℃; (6)U.L. recognized (File # E90700).

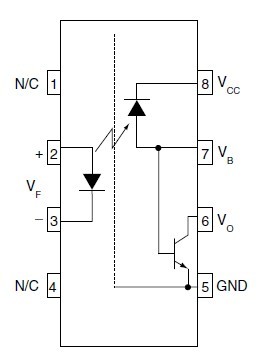

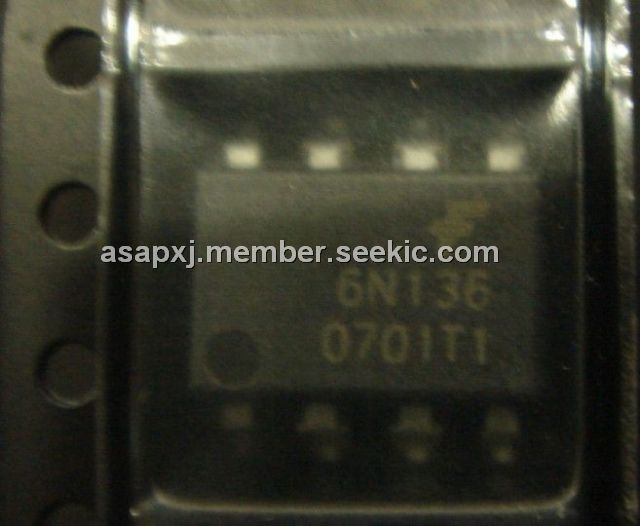

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
6N136SD
6N136SD
Fairchild Semiconductor
High Speed Optocouplers 1Mbit/s 1Ch Optocoup Transistor Hi Speed
Data Sheet
0-1: $0.76
1-25: $0.67
25-100: $0.62
100-250: $0.53
