Product Summary

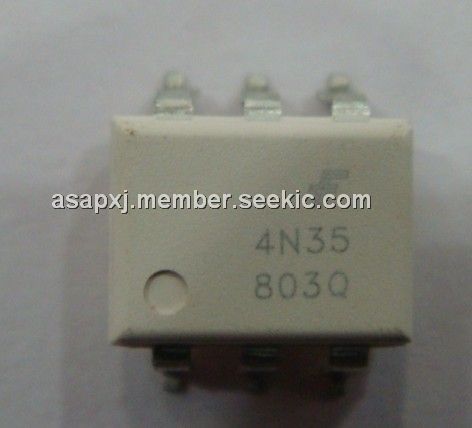

The 4N35SD is a general purpose 6-pin phototransistor optocoupler. It consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package. The applications of the 4N35SD include: Power supply regulators, Digital logic inputs, Microprocessor inputs.
Parametrics
4N35SD absolute maximum ratings: (1)Storage Temperature TSTG: -55 to +150℃; (2)Operating Temperature TOPR: -55 to +100℃; (3)Wave Solder Temperature TSOL: 260 for 10 sec ℃; (4)Total Device Power Dissipation @ TA=25℃ PD: 25mA; (5)DC/Average Forward Input Current IF: 100 (non-M), 60 (-M) mA; (6)Reverse Input Voltage VR: 6V; (7)Forward Current - Peak (300μs, 2% Duty Cycle) IF(pk): 3A; (8)LED Power Dissipation @ TA=25℃ PD: 150 (non-M), 120 (-M) mW.
Features
4N35SD features: (1)Also available in white package by specifying -M suffix, eg. 4N25-M; (2)UL recognized (File # E90700); (3)VDE recognized (File # 94766): Add option V for white package (e.g., 4N25V-M); Add option 300 for black package (e.g., 4N25.300).
