Product Summary
The 2SA2056 is a Transistor. It is designed for High-Speed Switching, DC-DC Converter, Strobe Applications.
Parametrics
2SA2056 absolute maximum ratings: (1)Collector-base voltage VCBO: -50 V; (2)Collector-emitter voltage VCEO: -50 V; (3)Emitter-base voltage VEBO: -7 V; (4)Collector current DC IC: -2.0 A, Pulse ICP: -3.5 A; (5)Base current IB: -200 A; (6)Collector power dissipation DC: 625 W; (7)Junction temperature Tj: 150 ℃; (8)Storage temperature range Tstg: -55 to 150 ℃.
Features
2SA2056 features: (1)High DC current gain: hFE = 200 to 500 (IC = -0.5 A); (2)Low collector-emitter saturation voltage: VCE (sat) = -0.2 V(max); (3)High-speed switching: tf = 90 ns (typ.).

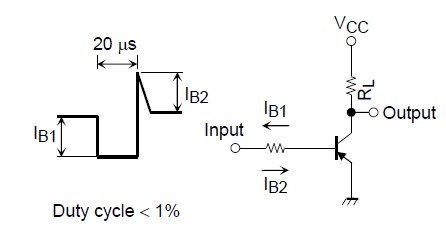

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

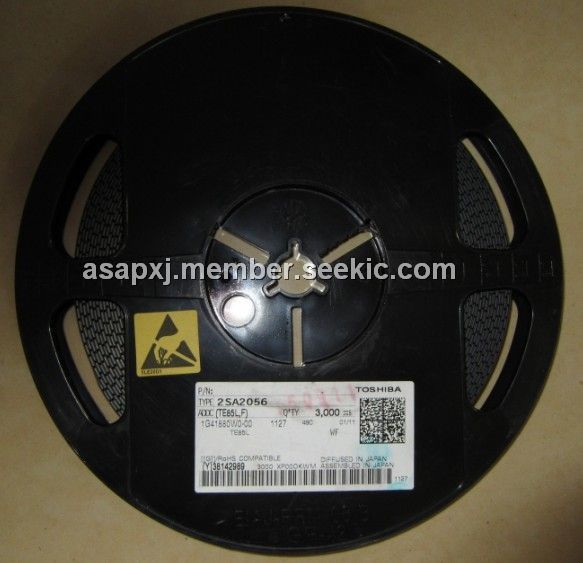

 2SA2056(TE85L,F) |
|
TRANSISTOR PNP 50V 2A TSM |
Data Sheet |
|
|
||||||
 |
2SA2056 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
