Product Summary

The 1SS388 is a diode. It is designed for high speed switching application.

Parametrics

1SS388 absolute maximum ratings: (1)Maximum (peak) reverse voltage VRM: 45V; (2)Reverse voltage VR: 40V; (3)Maximum (peak) forward current IFM: 300mA; (4)Average forward current IO: 100mA; (5)Surge current(10ms) IFSM: 1A; (6)Power dissipation P: 150mW; (7)Junction temperature Tj: 125℃; (8)Storage temperature range Tstg: -55 to 125℃; (9)Operating temperature range Topr: -40 to 100℃.

Features

1SS388 features: (1)Small package; (2)Low forward voltage: VF=0.54V(typ); (3)Low reverse current: IR=5μA(typ).

Diagrams

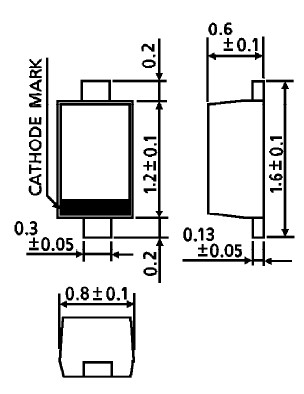

1SS388 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

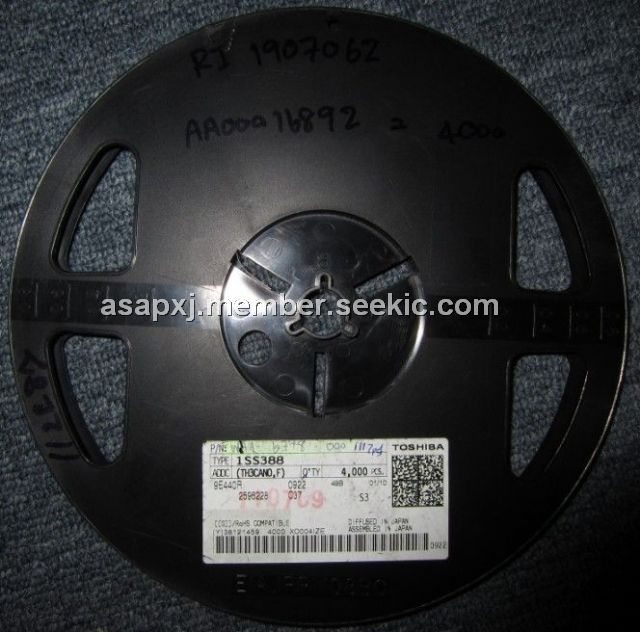

1SS388
1SS388
Other

Data Sheet
Negotiable
1SS388(TL3,F,D)
1SS388(TL3,F,D)
Toshiba
Rectifiers High Speed 0.54V VF 45V VRM 40VR 300 mA
Data Sheet
0-1: $0.04
1-10: $0.04
10-100: $0.03
100-250: $0.03
1SS388TL3FT
1SS388TL3FT
Toshiba
Schottky (Diodes & Rectifiers) 45V 0.1A 2-Pin ESC Diode Schottky
Data Sheet
0-1: $0.08
1-10: $0.07
10-100: $0.05
100-250: $0.03
1SS388(TL3,F,T)
1SS388(TL3,F,T)
Toshiba
Schottky (Diodes & Rectifiers) Vr=40V Io=0.1A 2Pin
Data Sheet
Negotiable
