W78LE516P-24

8-bit microcontroller, PLCC-44, -0.3 to +6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: W78LE516P-24

Brand:: Winbond - Winbond | Pack: PLCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:W78LE516P-24
US $0.00 - 5.00
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

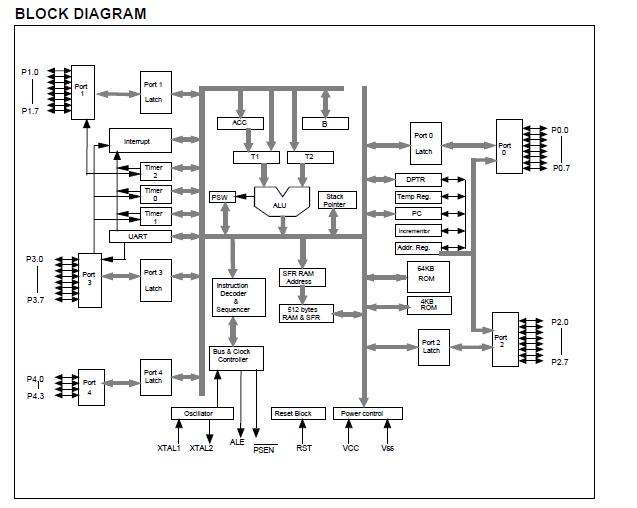

The W78LE516P-24 is an 8-bit microcontroller which has an in-system programmable Flash EPROM for firmware updating. The instruction set of the W78LE516P-24 is fully compatible with the standard 8052. It contains a 64K bytes of main Flash EPROM and a 4K bytes of auxiliary Flash EPROM; 512 bytes of on-chip RAM; four 8-bit bidirectional and bit-addressable I/O ports; an additional 4-bit port P4; three 16-bit timer/counters; a serial port. The W78LE516P-24 has two power reduction modes, idle mode and power-down mode, both of which are software selectable.

Parametrics

W78LE516P-24 absolute maximum ratings: (1)DC Power Supply, VDD-VSS: -0.3 to +6.0V; (2)Input Voltage, VIN: VSS -0.3 to VDD +0.3V; (3)Operating Temperature, TA: 0 to 60℃; (4)Storage Temperature, TST: -55 to +150℃.

Features

W78LE516P-24 features: (1)Fully static design 8-bit CMOS microcontroller; (2)64K bytes of in-system programmable Flash EPROM for Application Program (APROM); (3)4K bytes of auxiliary Flash EPROM for Loader Program (LDROM); (4)512 bytes of on-chip RAM. (including 256 bytes of AUX-RAM, software selectable); (5)64K bytes program memory address space and 64K bytes data memory address space; (6)Four 8-bit bi-directional ports; (7)One 4-bit multipurpose programmable port; (8)Three 16-bit timer/counters; (9)One full duplex serial port; (10)Eight-sources, two-level interrupt capability; (11)Built-in power management; (12)Code protection; (13)Packaged in PLCC 44.
